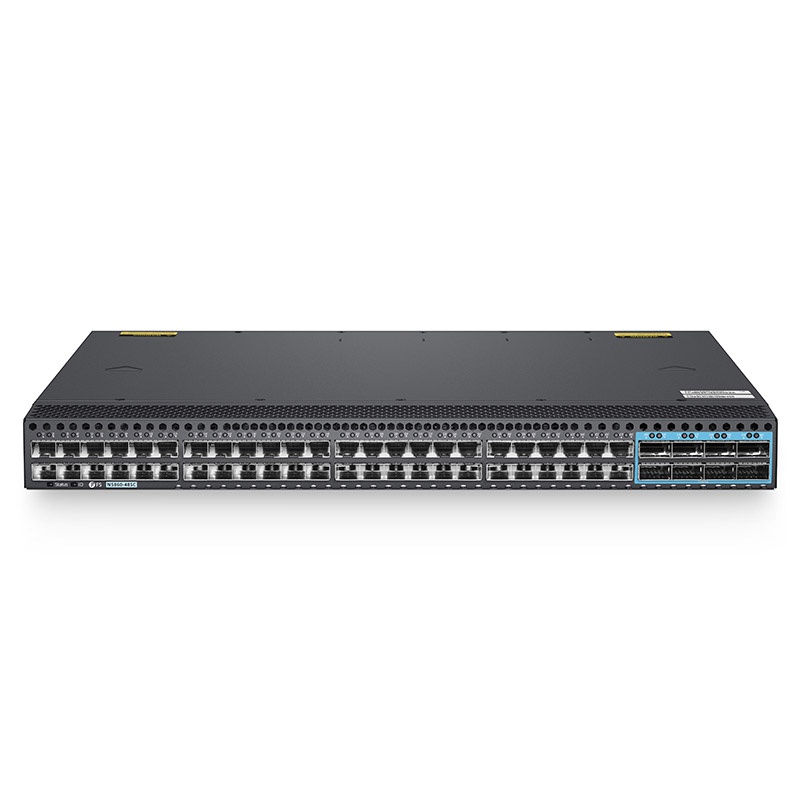

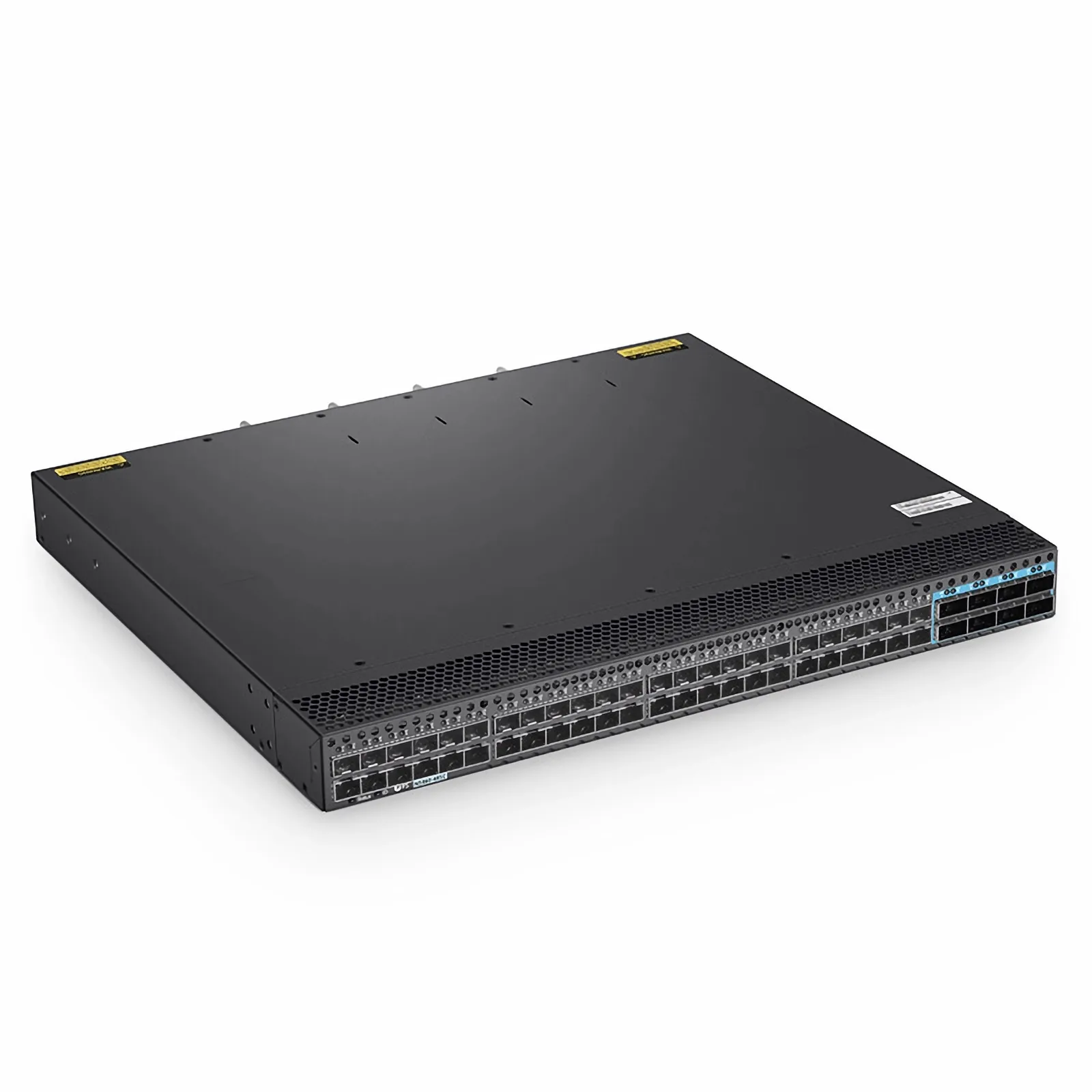

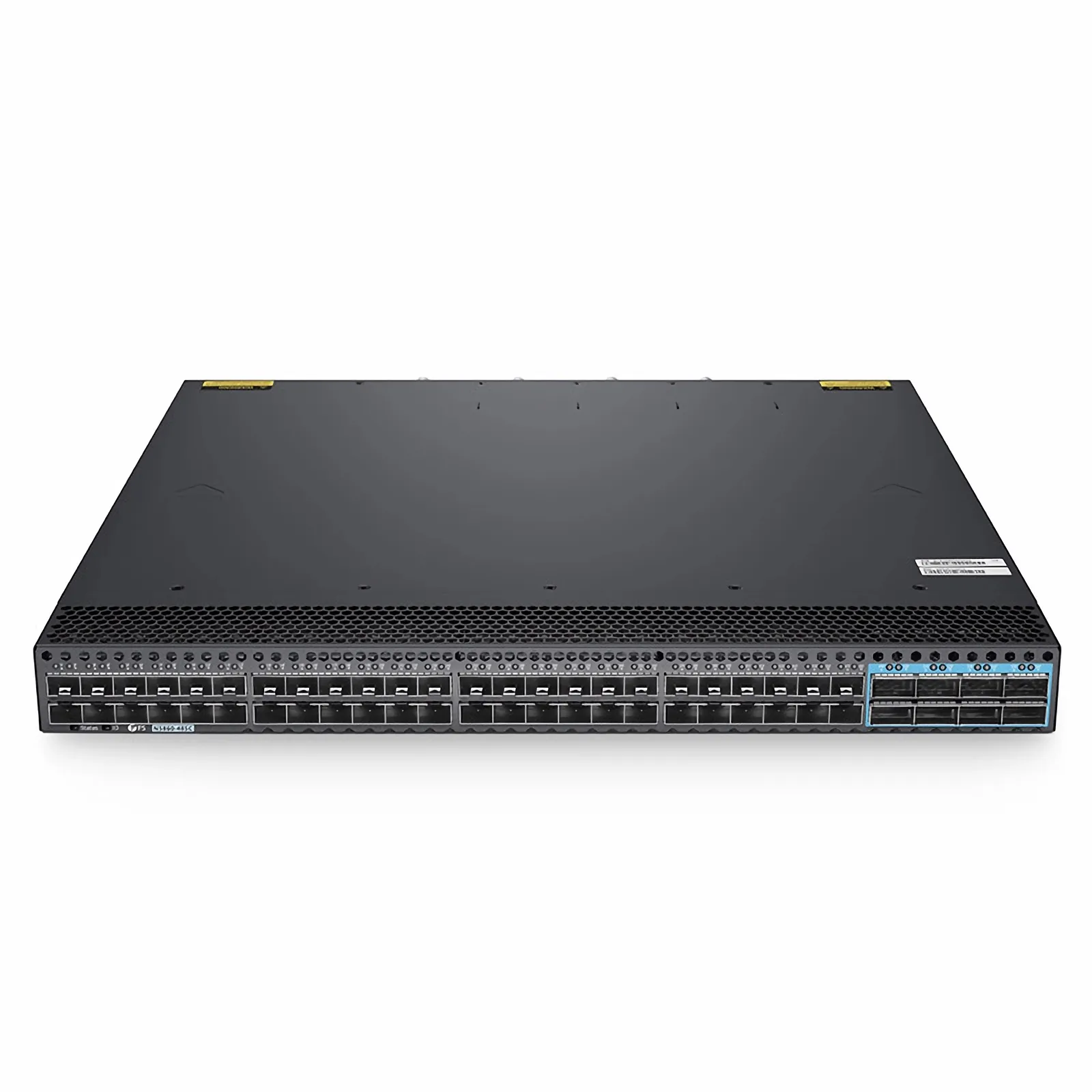

N5860-48SC, 48-Port Ethernet L3 Data Center Switch, 48 x 10Gb SFP+, with 8 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, Dual AC PSUs
N5860-48SC est un commutateur haute densité dans un format compact 1U avec 48 ports 1/10GbE et 8 ports 40/100GbE à débit maximal. Il adopte des puces Broadcom pour offrir une capacité de commutation de 1,28 Tbps et un débit de transfert de 1920 Mpps.
Spécifications Techniques
Plongez dans les spécifications et les métriques de performance.
| Feature | Value |
|---|---|

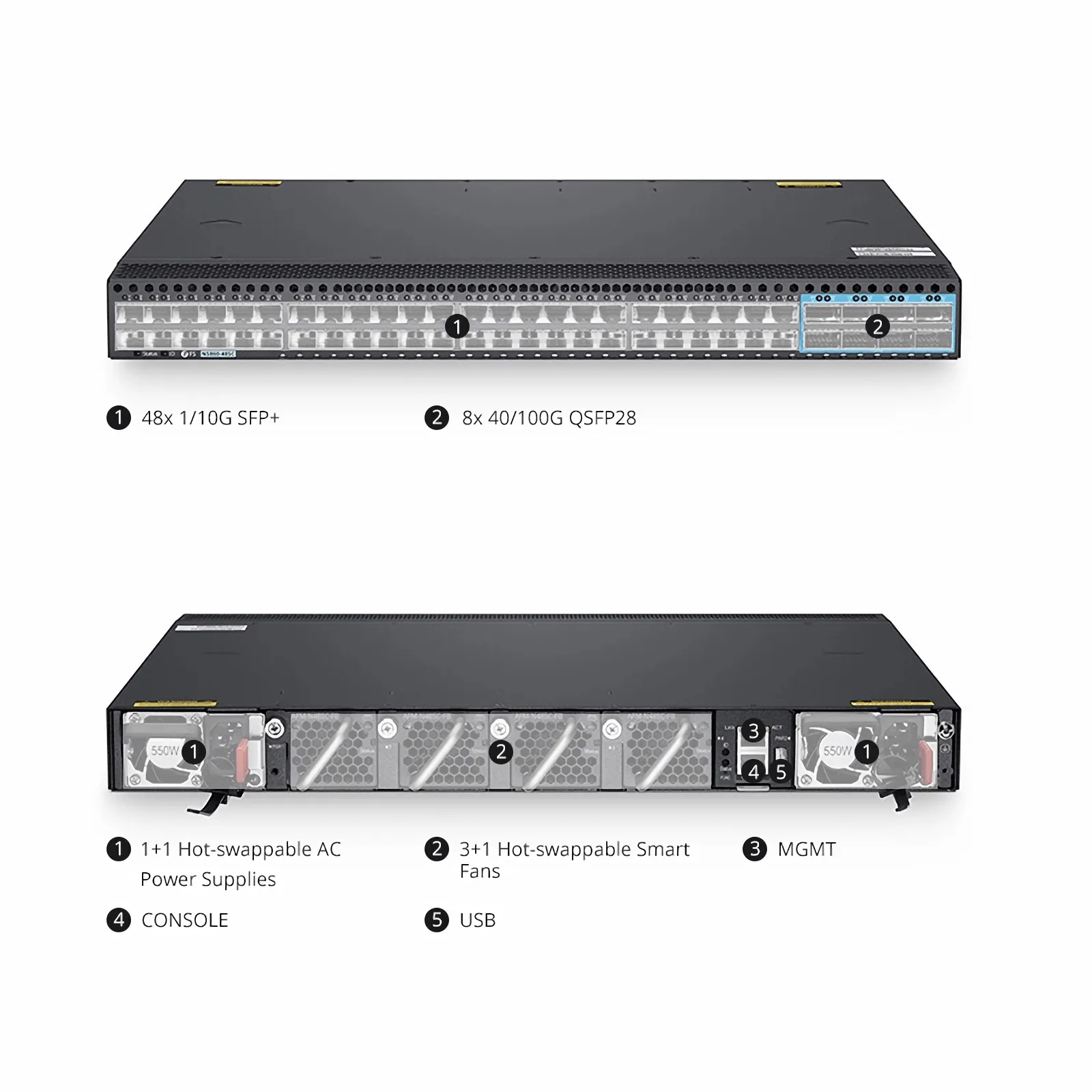

| Ports | 48x 10G SFP+, 8x 100G QSFP28 |
| Switching Capacity | 1.28 Tbps |
| Switch Chip | Broadcom BCM56873 Trident 3 |
| Forwarding Rate | 2000 Mpps |

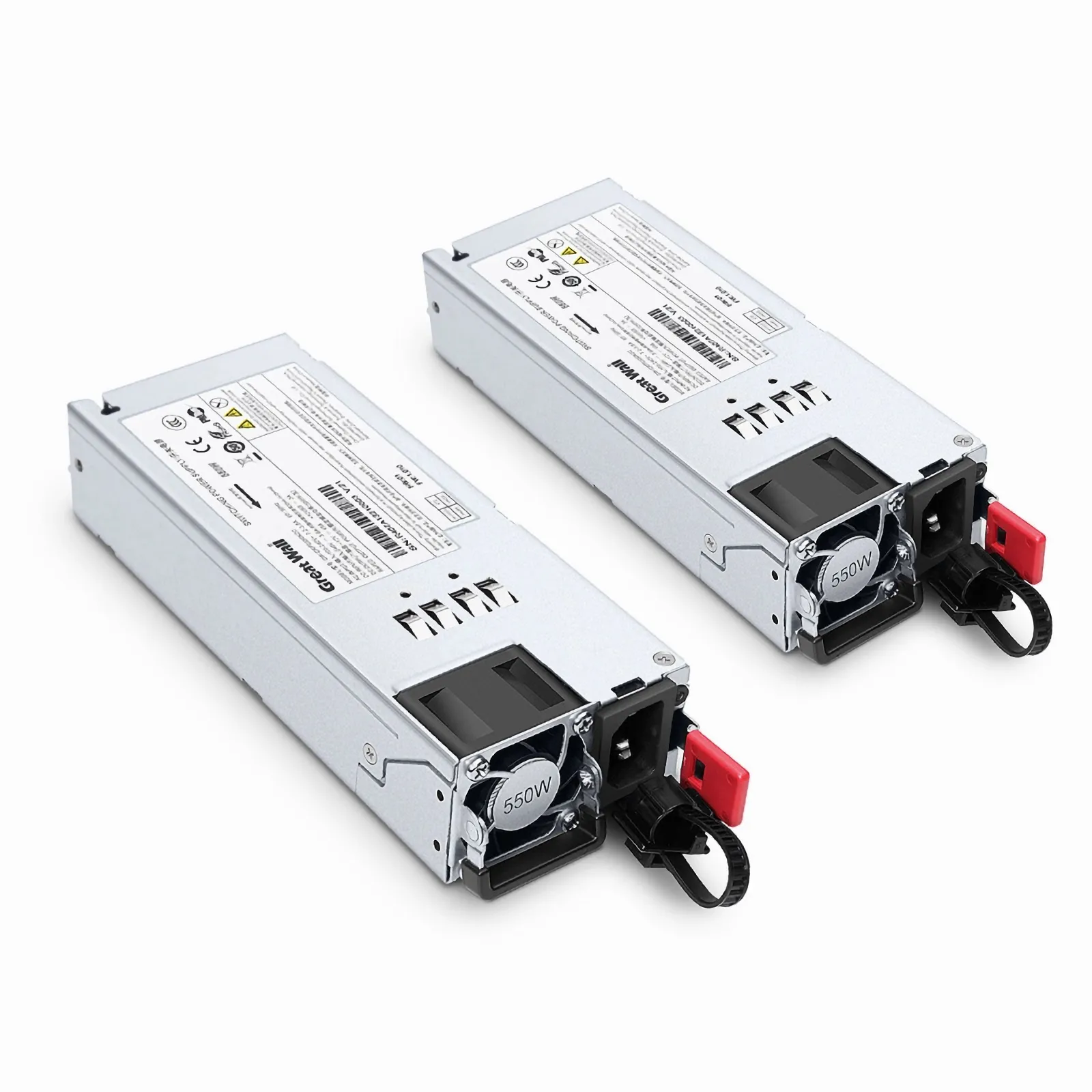

| Power Supplies | 2 (1+1 Redundancy) Hot-swappable, AC |
| Packet Buffer | 32MB |
| Fans | 4x Hot-swappable Fans, Front-to-Back |
| Jumbo Frame | 9,216 |
| Dimensions (HxWxD) | 1.73"x 17.4"x 15.2" (44x 442x 387mm) |
| MTBF | 330,000 hours |
| Latency | <1μs |
| MAC Address | 96K |
| Input Voltage | 90-264VAC, 50-60Hz |
| IPv4/IPv6 Routes | 128,000/64,000 |
| Input Current | 3.5A-7.2A |
| Number of VLANs | 4K |
| Max. Power Consumption | <300W |
| SDRAM | 4GB |
| Operating Temperature | 0 to 45ºC (32 to 113°F) |
| Flash Memory | 8GB (EMMC) |
Caractéristiques Clés
Découvrez les capacités avancées du N5860-48SC switch.
High Performance
1.28 Tbps switching capacity and 1920 Mpps forwarding rate with Broadcom BCM56873 Trident 3 chip.
High Availability

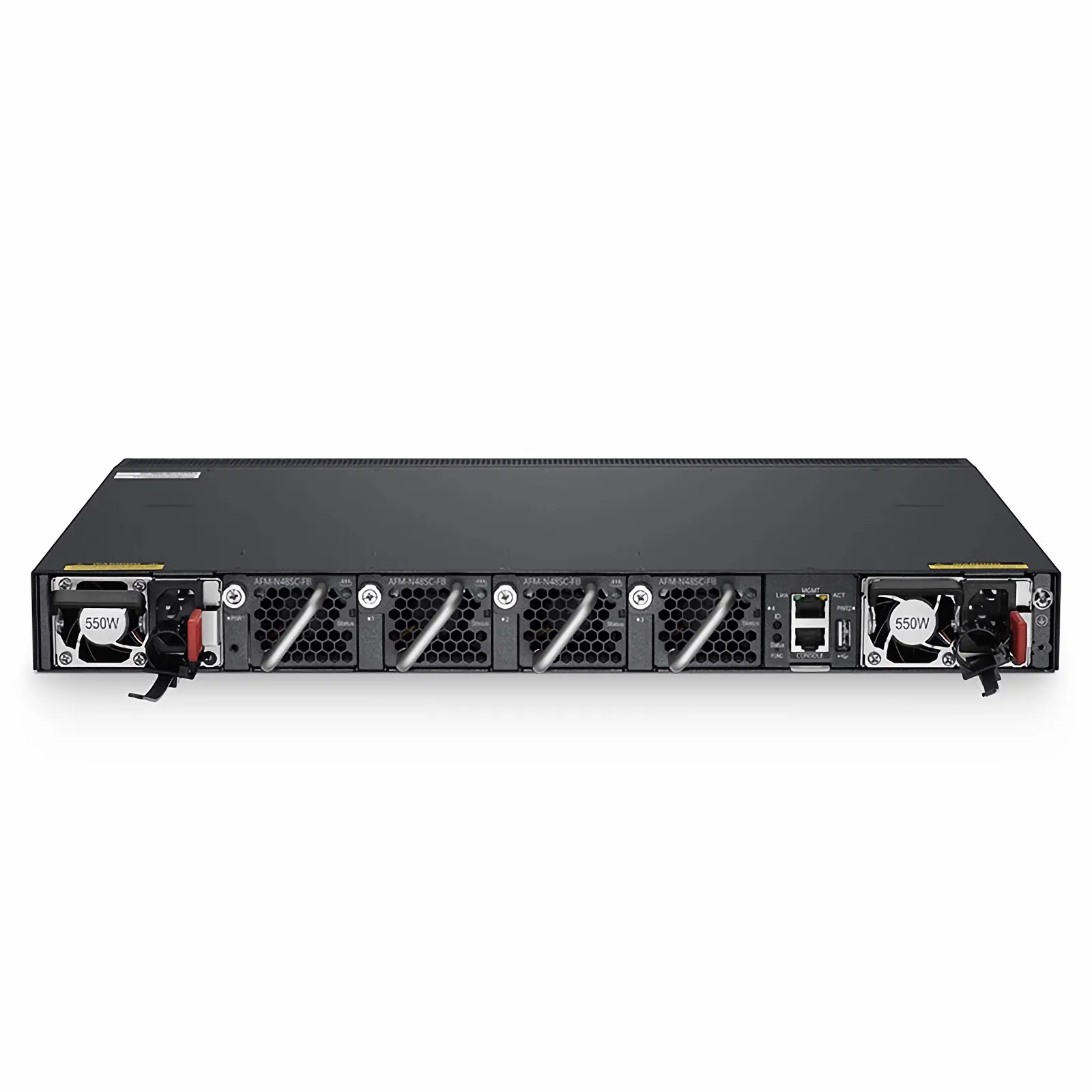

Dual redundant hot-swappable power supplies and 4x hot-swappable fans for maximum uptime.
Advanced Features
Support for MLAG/Stacking, EVPN-VXLAN, and comprehensive Layer 2 and Layer 3 capabilities.
Certifications de Qualité
Totalement certifié pour répondre aux normes internationales strictes de sécurité et de qualité.
Conformité Européene - European Conformity
Federal Communications Commission
Restriction of Hazardous Substances
Underwriters Laboratories
Solutions de Connectivité
Découvrez comment le N5860-48SC can be integrated into your network infrastructure.
Data Center Interconnect
High-speed connectivity between data centers for seamless workload mobility and disaster recovery.
AI/ML Training Cluster
Optimized network architecture for distributed AI training workloads with low latency and high bandwidth.
