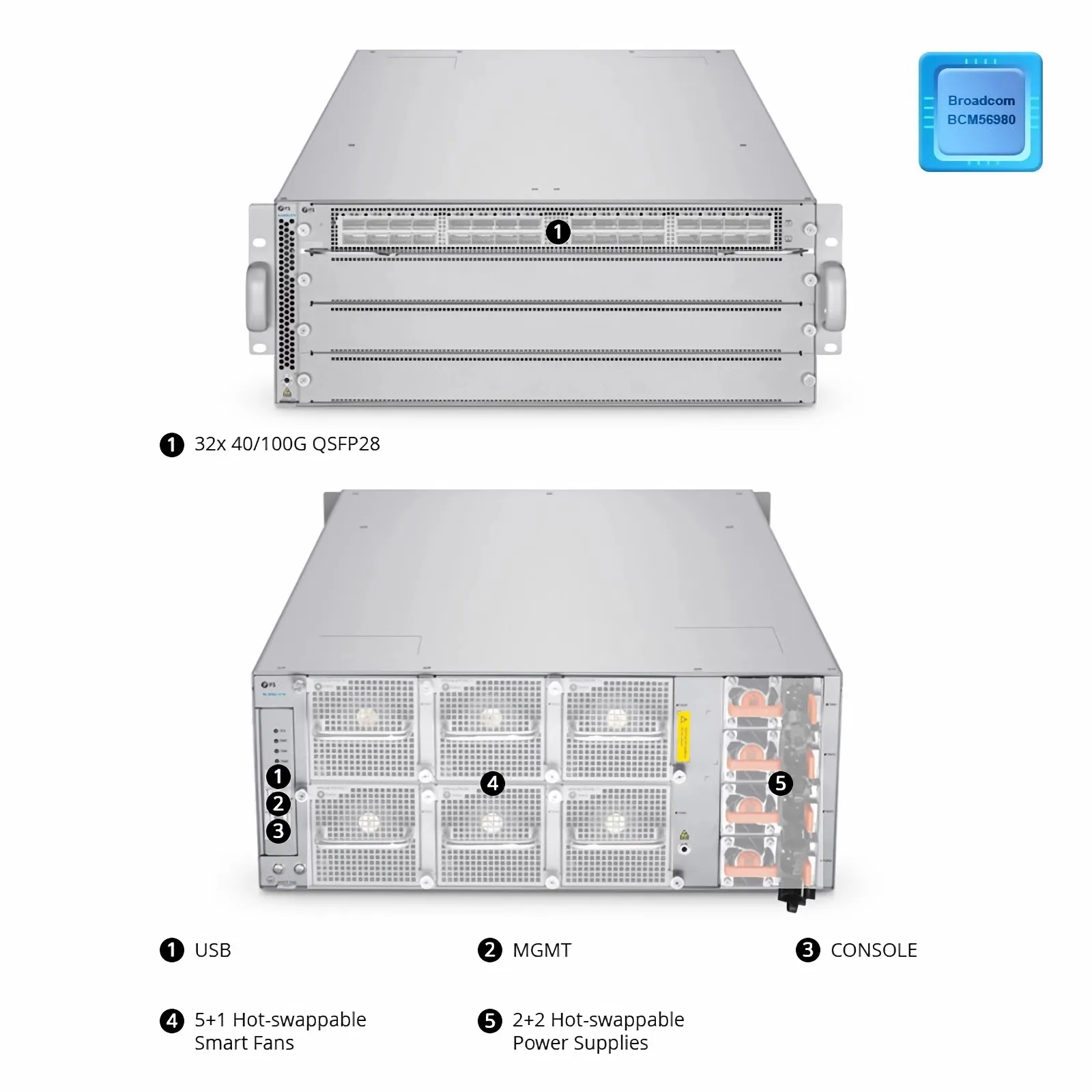

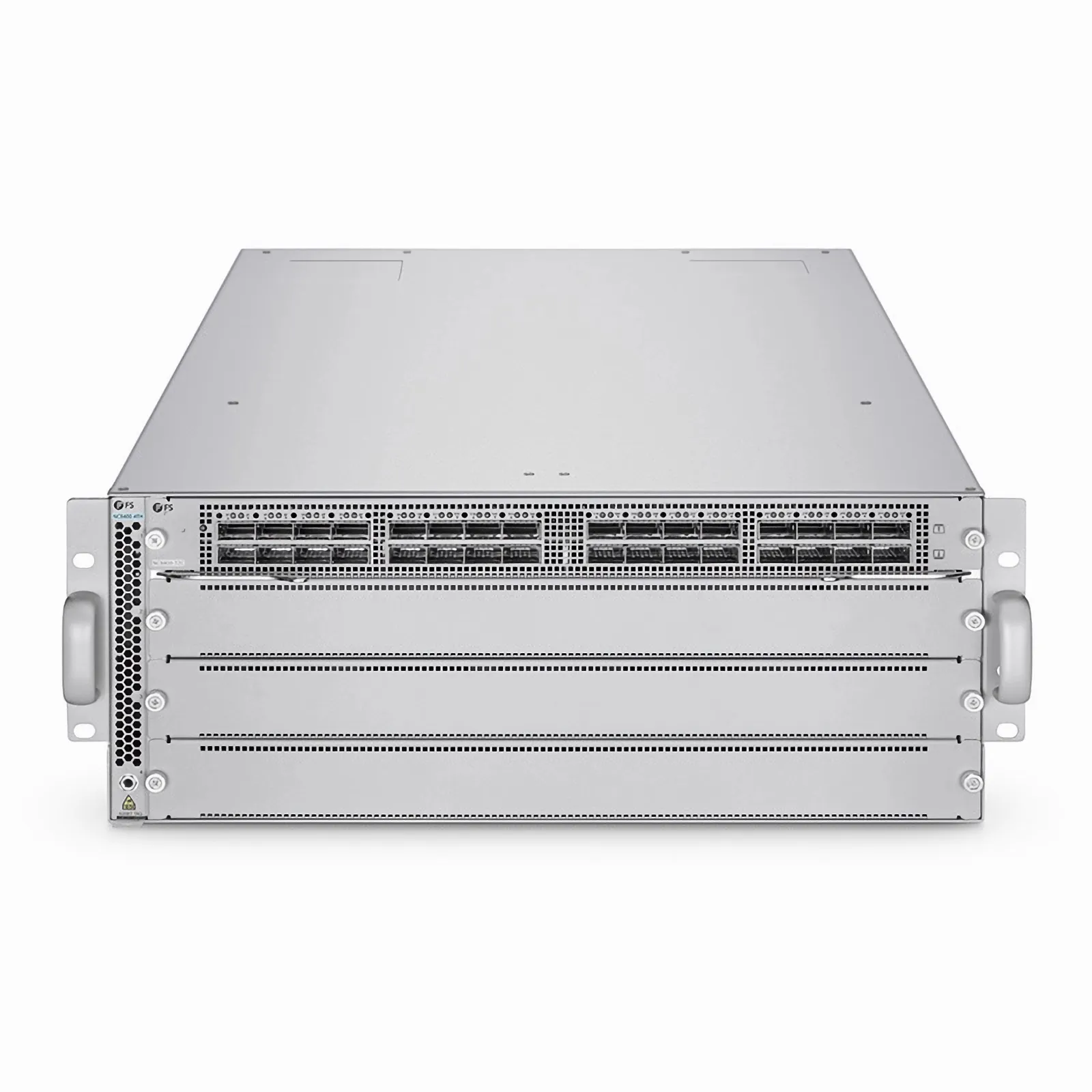

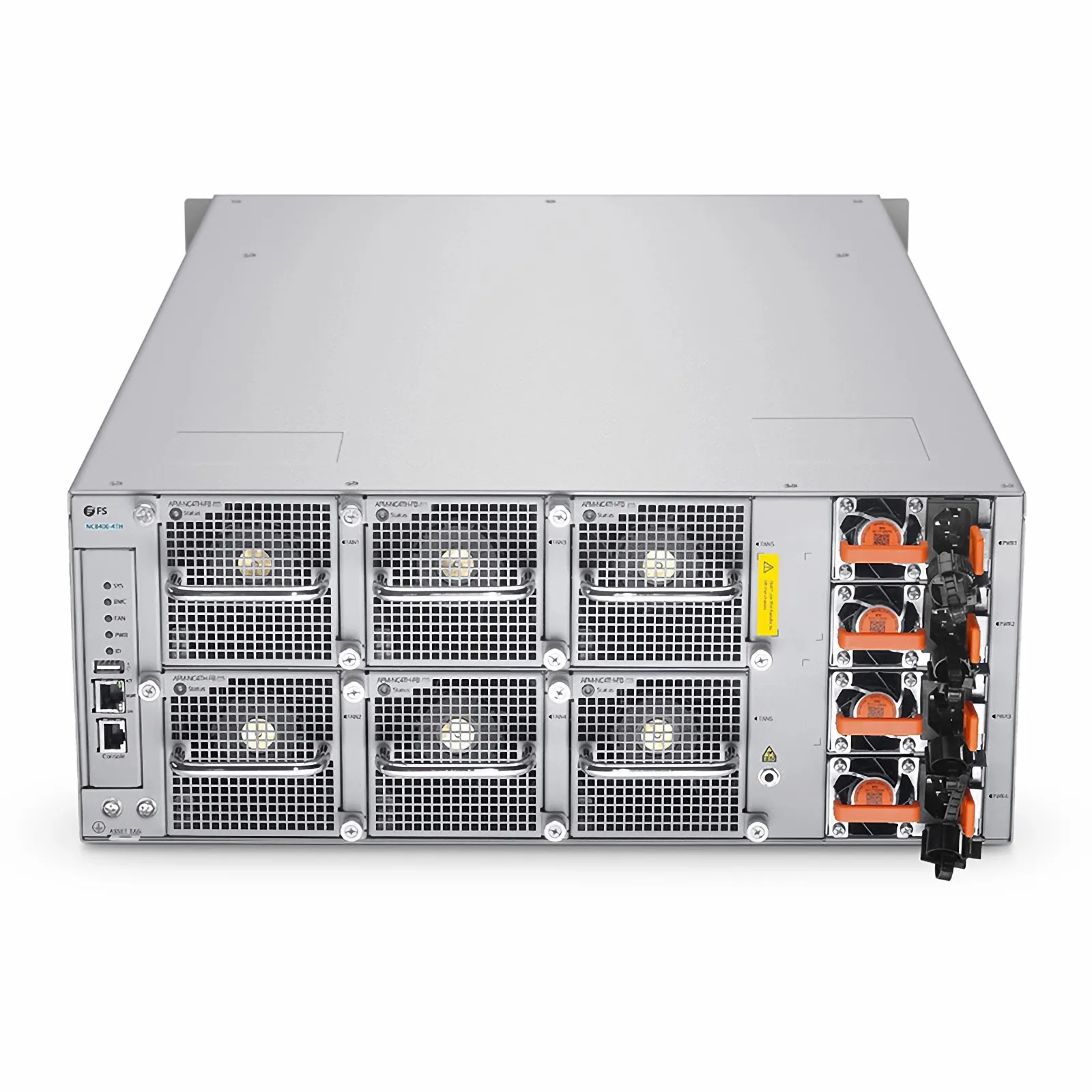

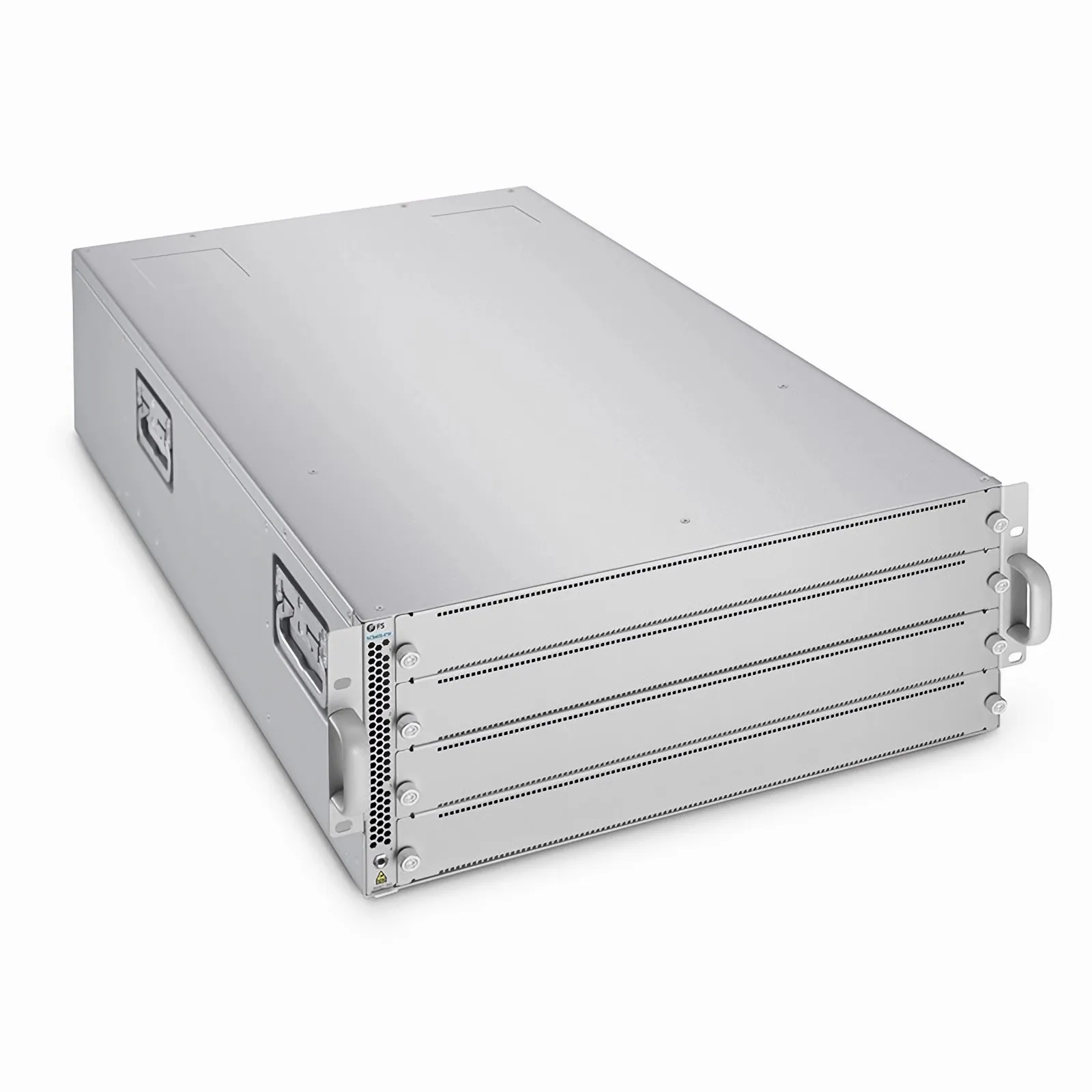

NC8400-4TH, 4-Slot 4U Ethernet L3 Data Center Chassis Switch Unloaded, with 4x 40/100/400Gb Line Cards, Supports MLAG, Broadcom Chip
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|
| Ports | 32x 40/100G SFP28 | 16x 40/100G QSFP28, 4x 400G QSFP-DD |
| Switching Capacity | 12.8Tbps |
| Switch Chip | BCM56980 |
| Forwarding Rate | 1905 Mpps |

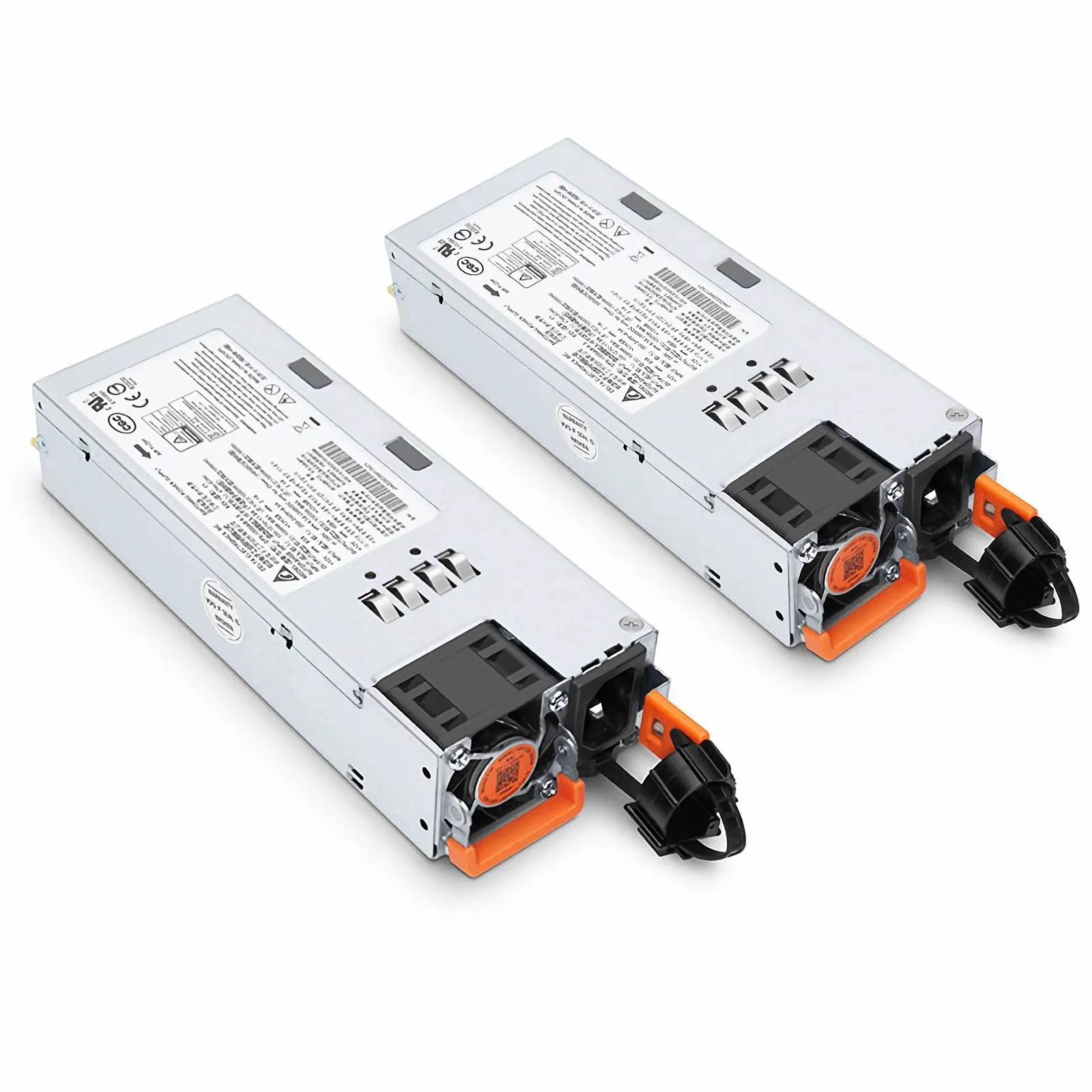

| Power Supplies | 4 (2+2 Redundancy) Hot-swappable |
| Packet Buffer | 64MB |
| Fans | 6x Hot-swappable Fans, Front-to-Back |
| Jumbo Frame | 9,216 |
| Dimensions (HxWxD) | 6.8''x 17.4‘'x 28.9'' (173.6x 442x 735mm) |
| MTBF | 390,000 |
| Weight | 95.9 lbs (43.5 kg), with four line cards, four power supplies and six fans |
| MAC Address | 8K |
| Input Voltage | 90-264VAC, 50-60Hz |
| IPv4/IPv6 Routes | 750,000/250,000 |
| Input Current | 13.8-8.5A |
| Number of VLANs | 4K |
| Max. Power Consumption | <1950W |
| SDRAM | 8GB |
| Operating Temperature | 32°F to 104°F (0ºC to 40ºC) |
| Flash Memory | 64GB (SSD) |
