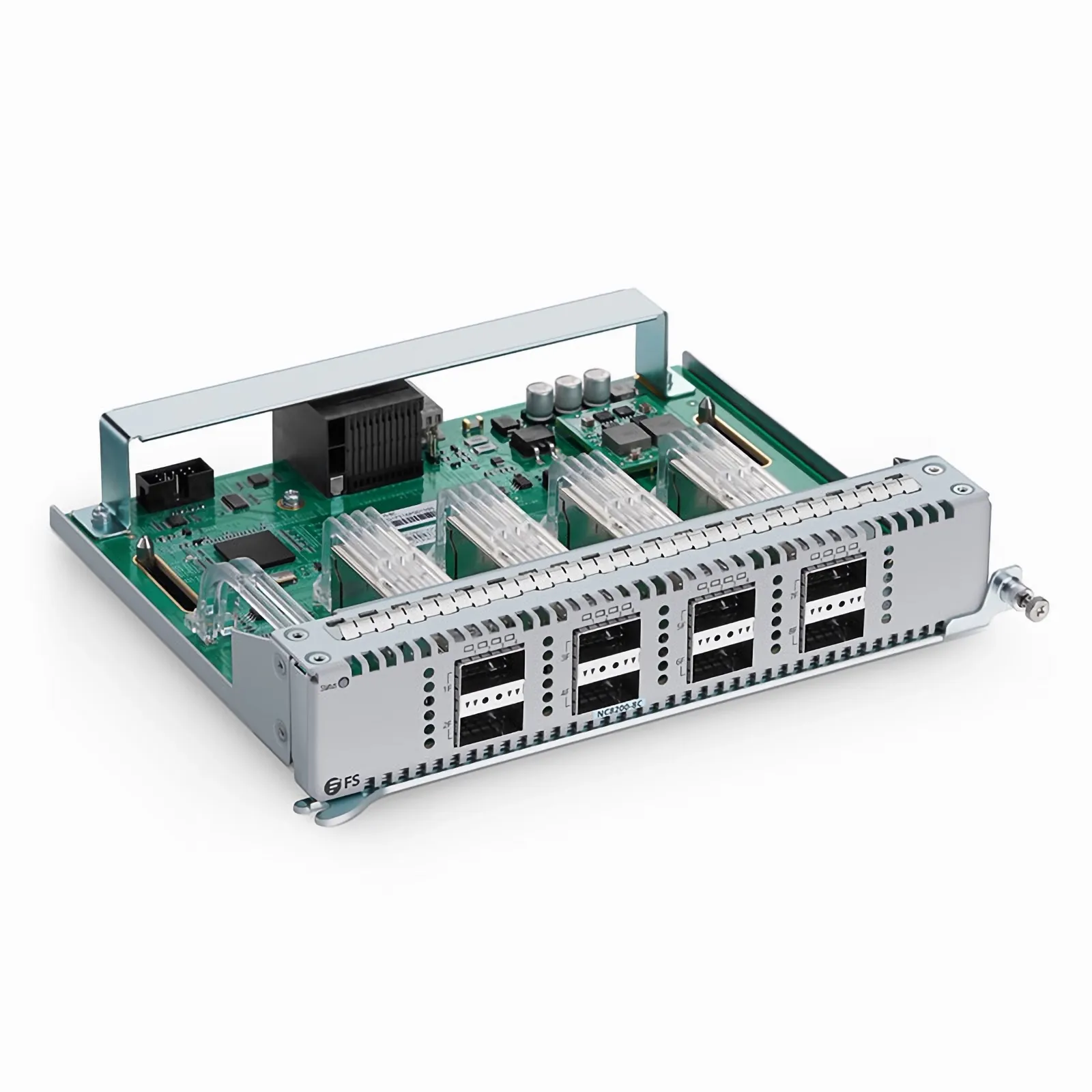

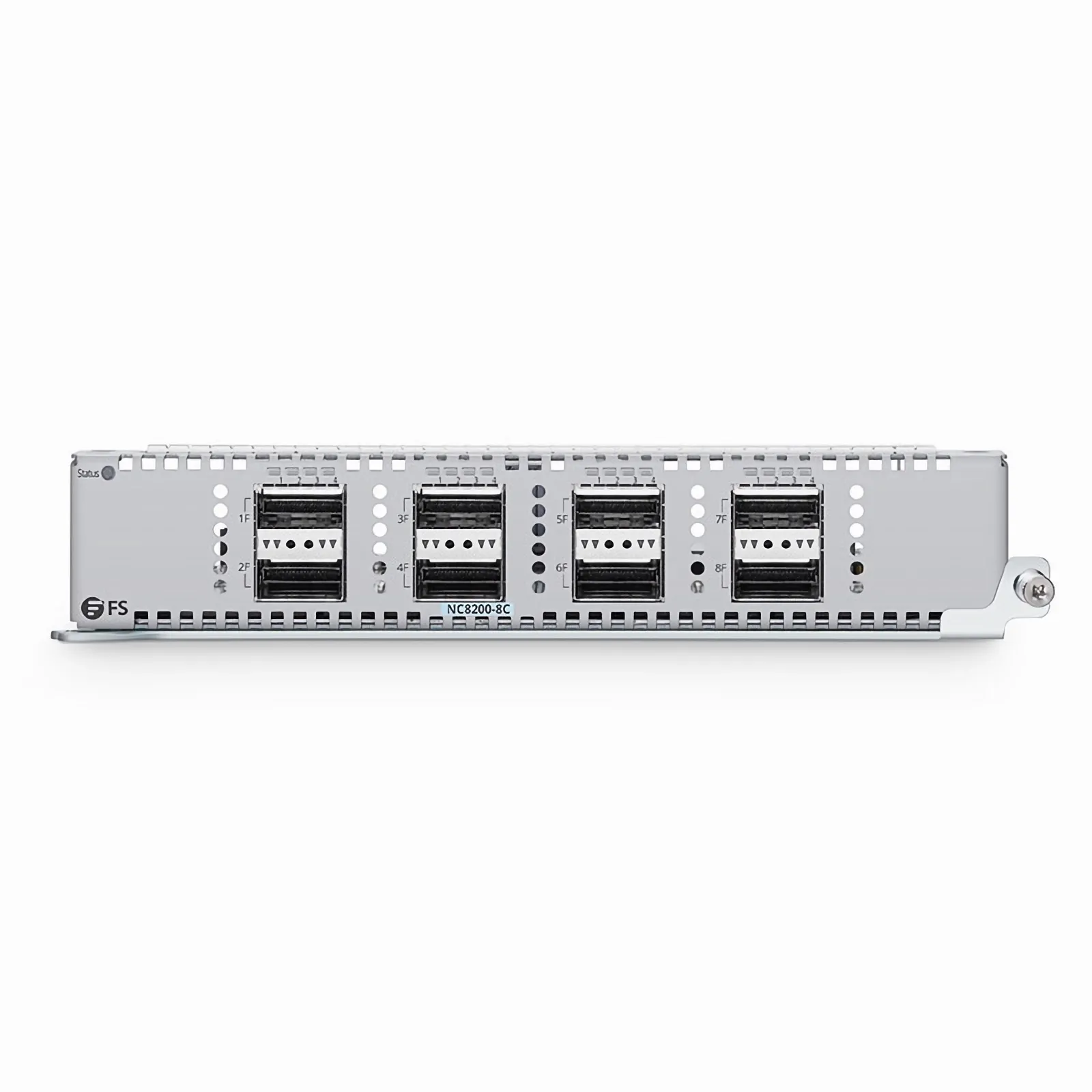

NC8200-8C, 8-Port 100Gb QSFP28 Line Card for Data Center Chassis Switch NC8200-4TD
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|
| Ports | 8x 100G QSFP28 |
| Matching Switch Chassis | NC8200-4TD |
| Hot Swapping | Not supported |
| Max. Power Consumption | <57W |
| Dimensions (HxWxD) | 1.61''x 7.87''x 8.15'' (41x 200x 207mm) |
| Weight | 1.32 lbs (0.6kg) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Rack Units | 1RU |
