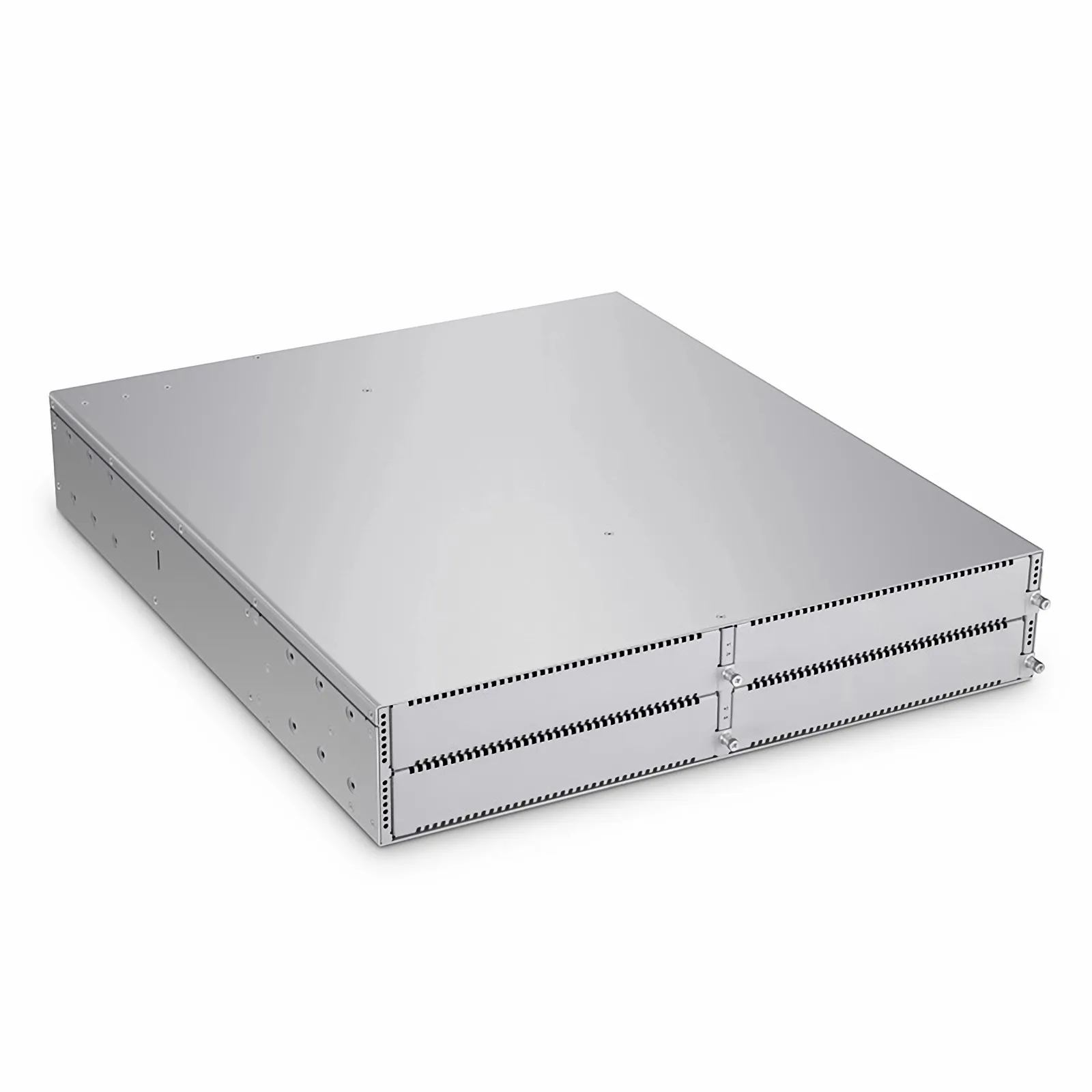

NC8200-4TD, 4-Slot 2U Ethernet L3 Data Center Chassis Switch Unloaded, with 4x 25/40/100Gb Line Cards, Support MLAG/Stacking, Broadcom Chip
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|

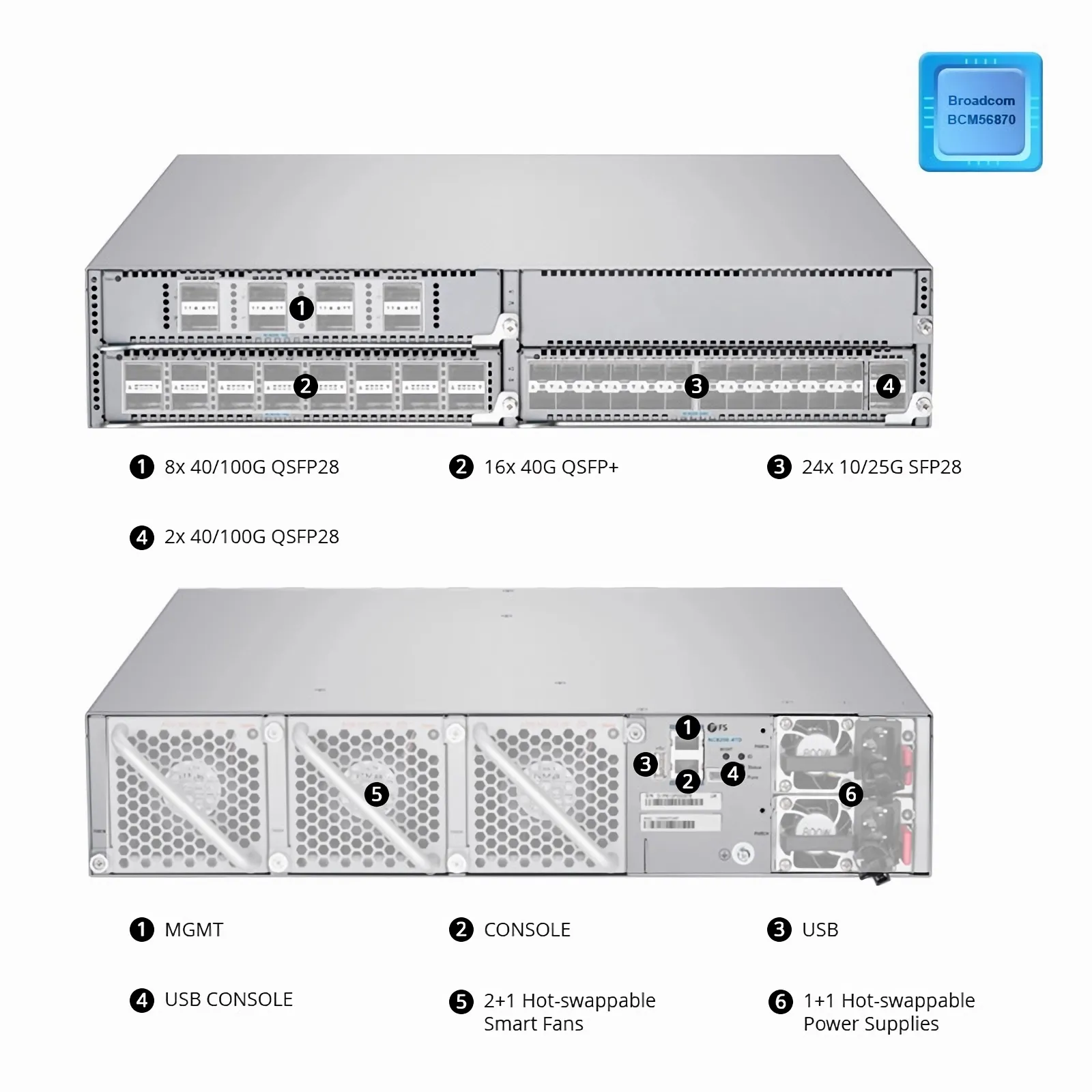

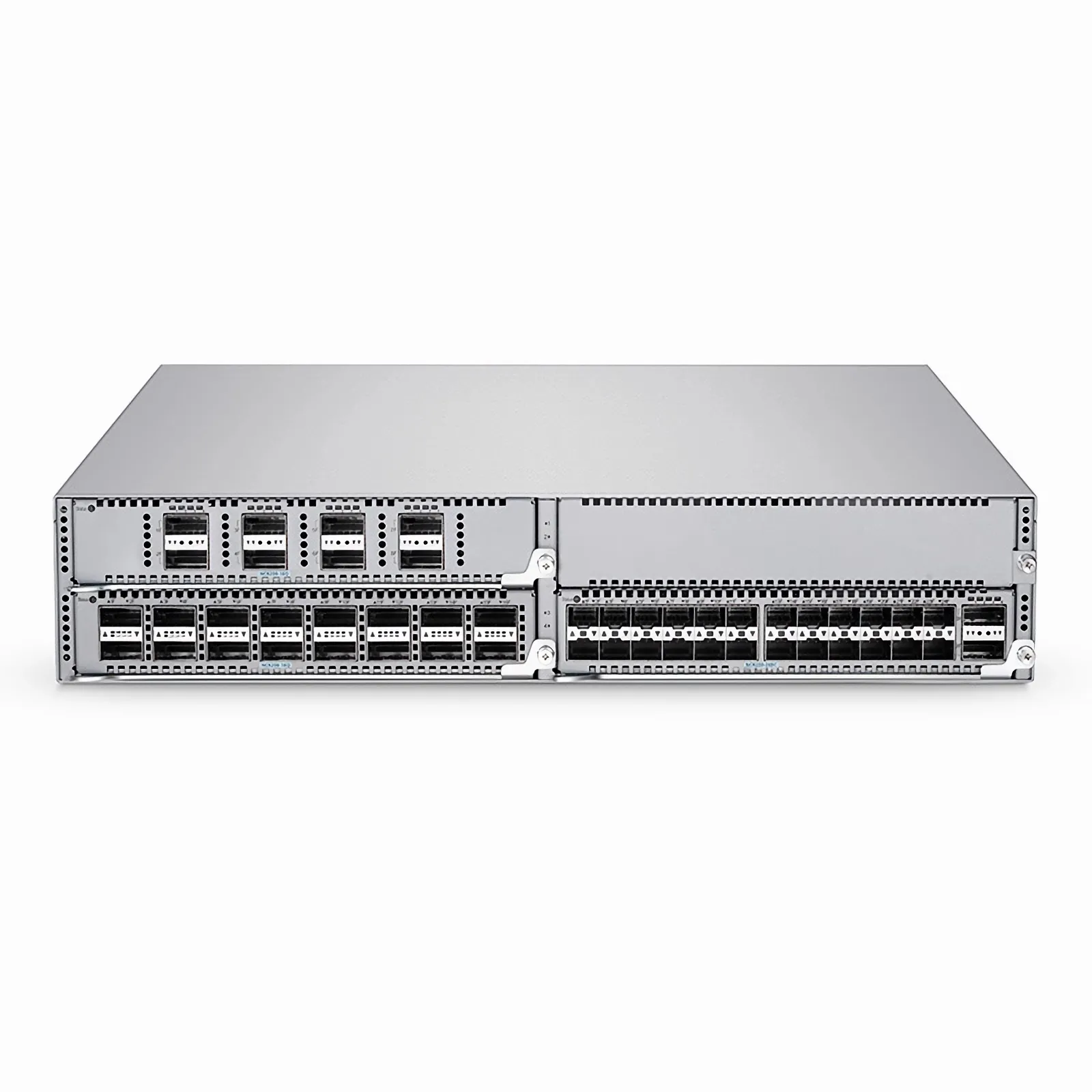

| Ports | 8x40/100G QSFP28 | 16x 40G QSFP+, 24x10/25GSFP28 |
| Switching Capacity | 3.2Tbps |
| Switch Chip | BCM56870 |
| Forwarding Rate | 4760 Mpps |

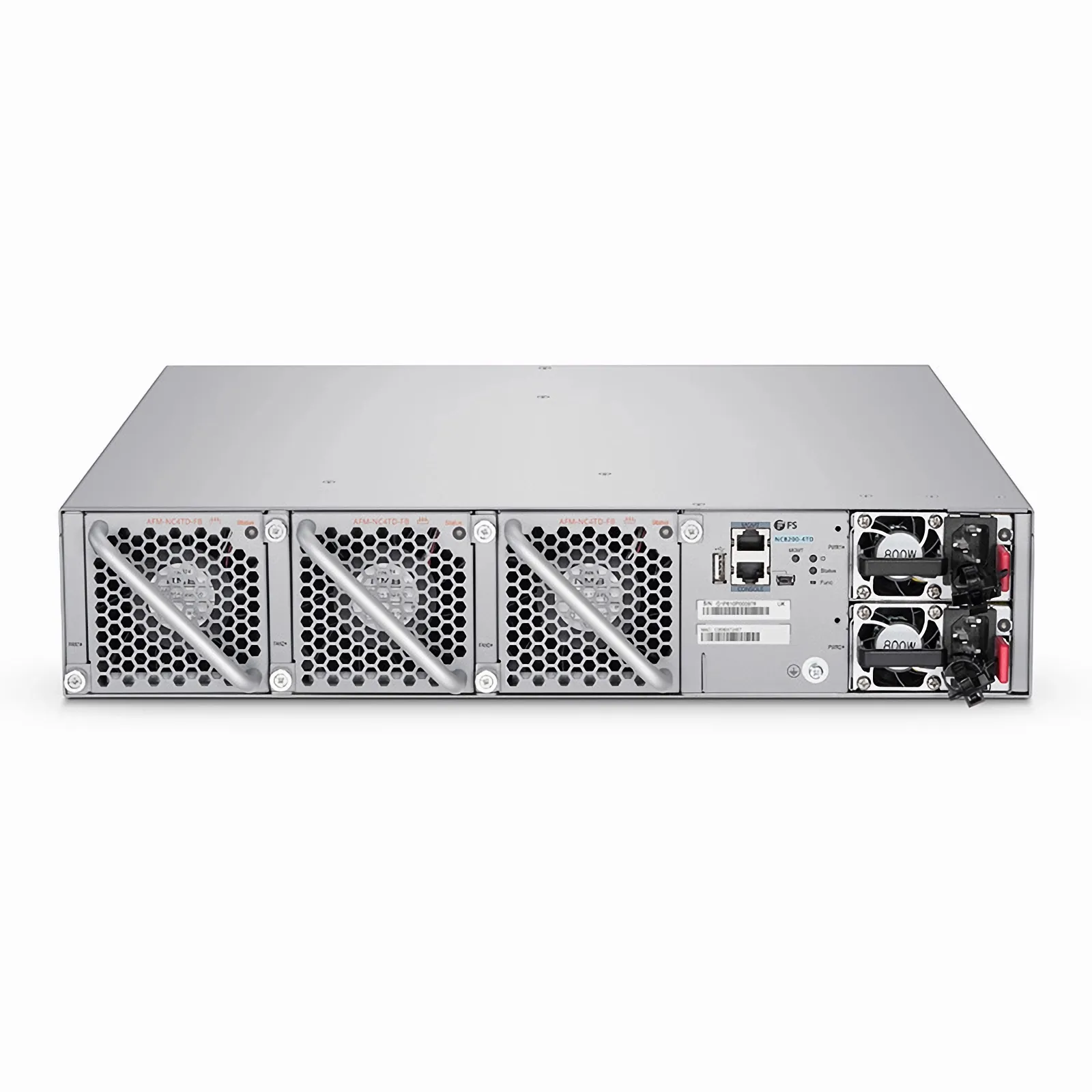

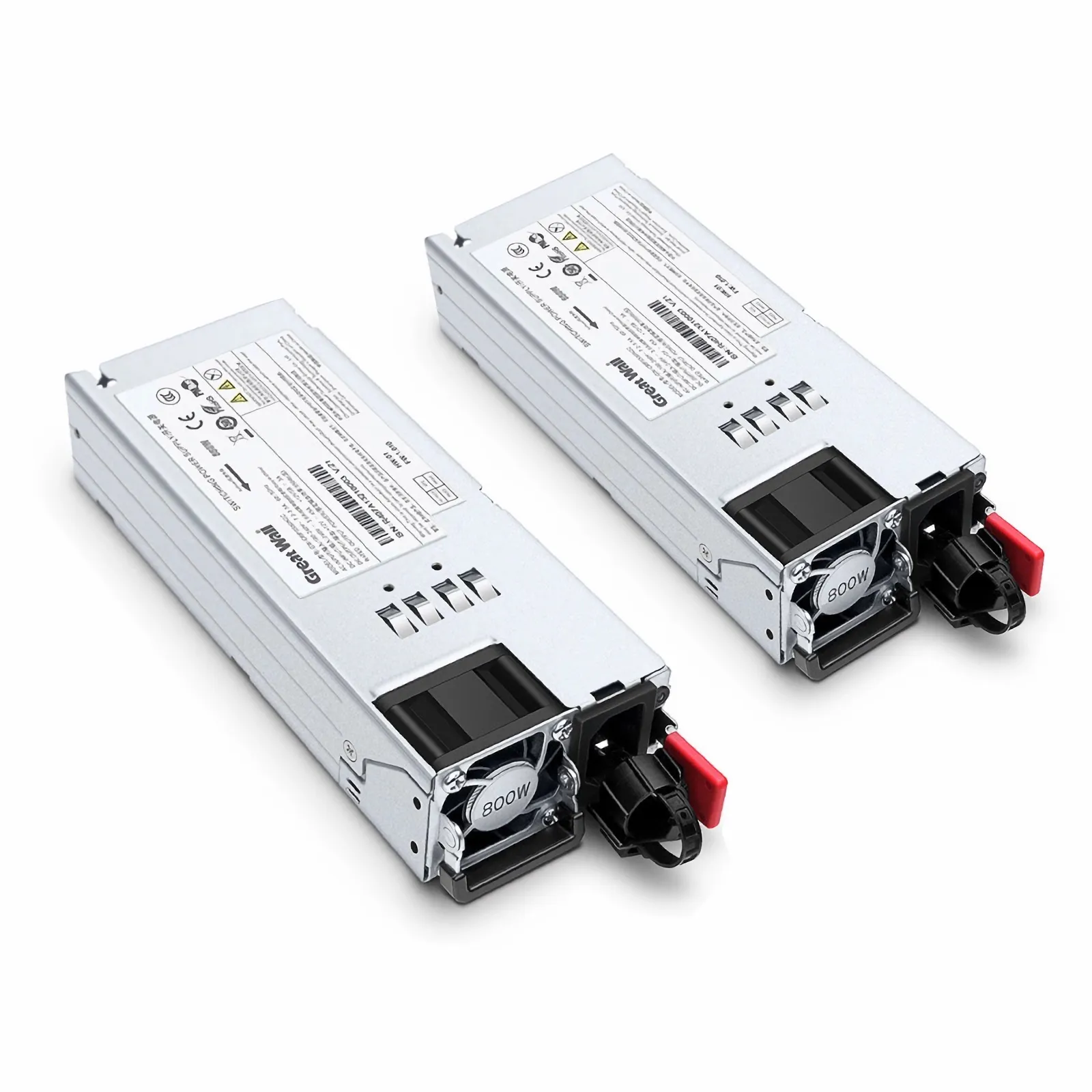

| Power Supplies | 2 (1+1 Redundancy) Hot-swappable |
| Packet Buffer | 32MB |
| Fans | 3x Hot-swappable Fans, Front-to-Back |
| Jumbo Frame | 9,216 |
| Dimensions (HxWxD) | 3.39"x 17.4"x 20.47" (86 x 442 x 520mm) |
| MTBF | 390,000 |
| Weight | 41.89 lbs (19 kg), with two power supplies and three fans |
| MAC Address | 96K |
| Input Voltage | 90-264VAC, 50-60Hz |
| IPv4/IPv6 Routes | 128,000/64,000 |
| Input Current | 10-5A |
| Number of VLANs | 4K |
| Max. Power Consumption | <600W |
| SDRAM | 4GB |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Flash Memory | 8GB (EMMC) |
