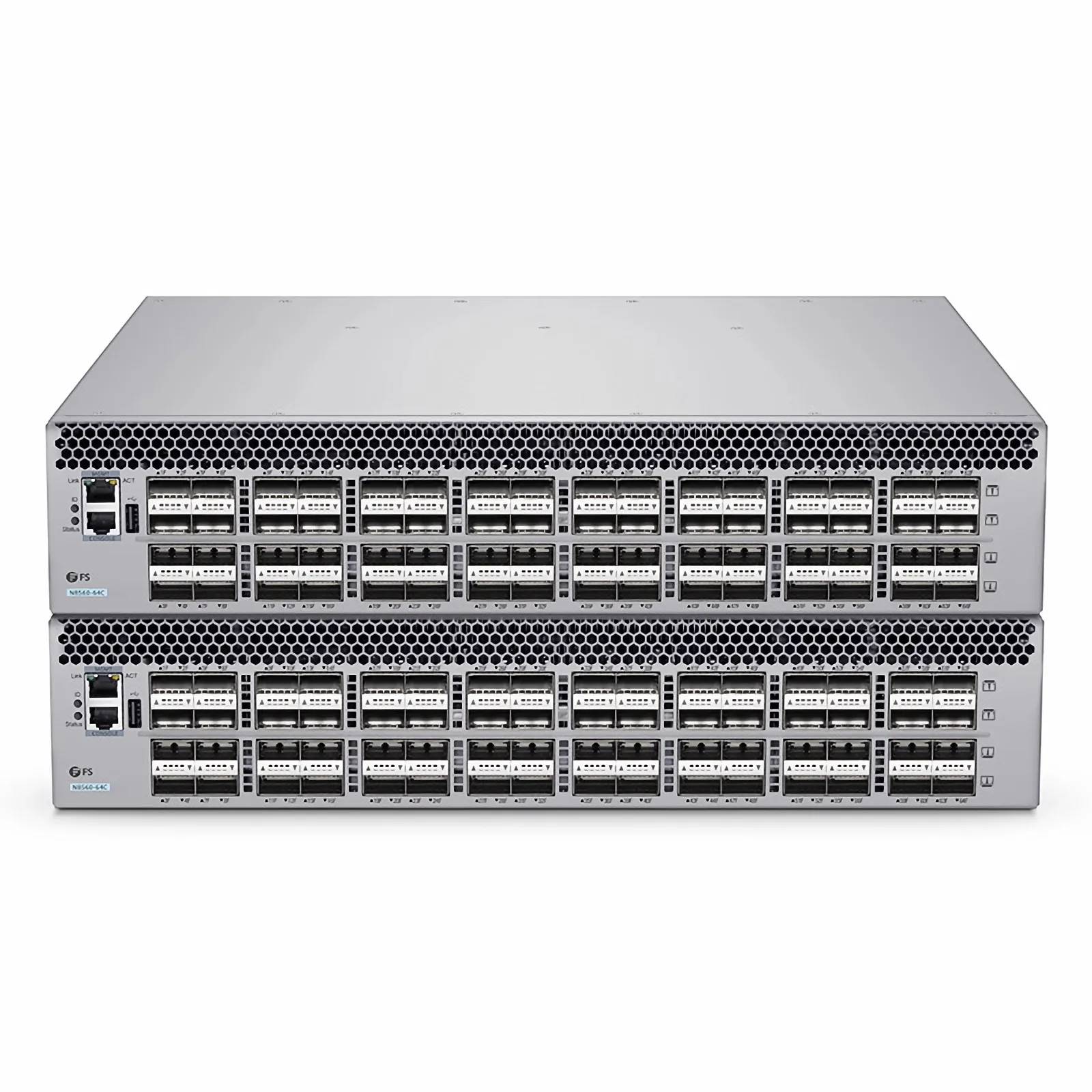

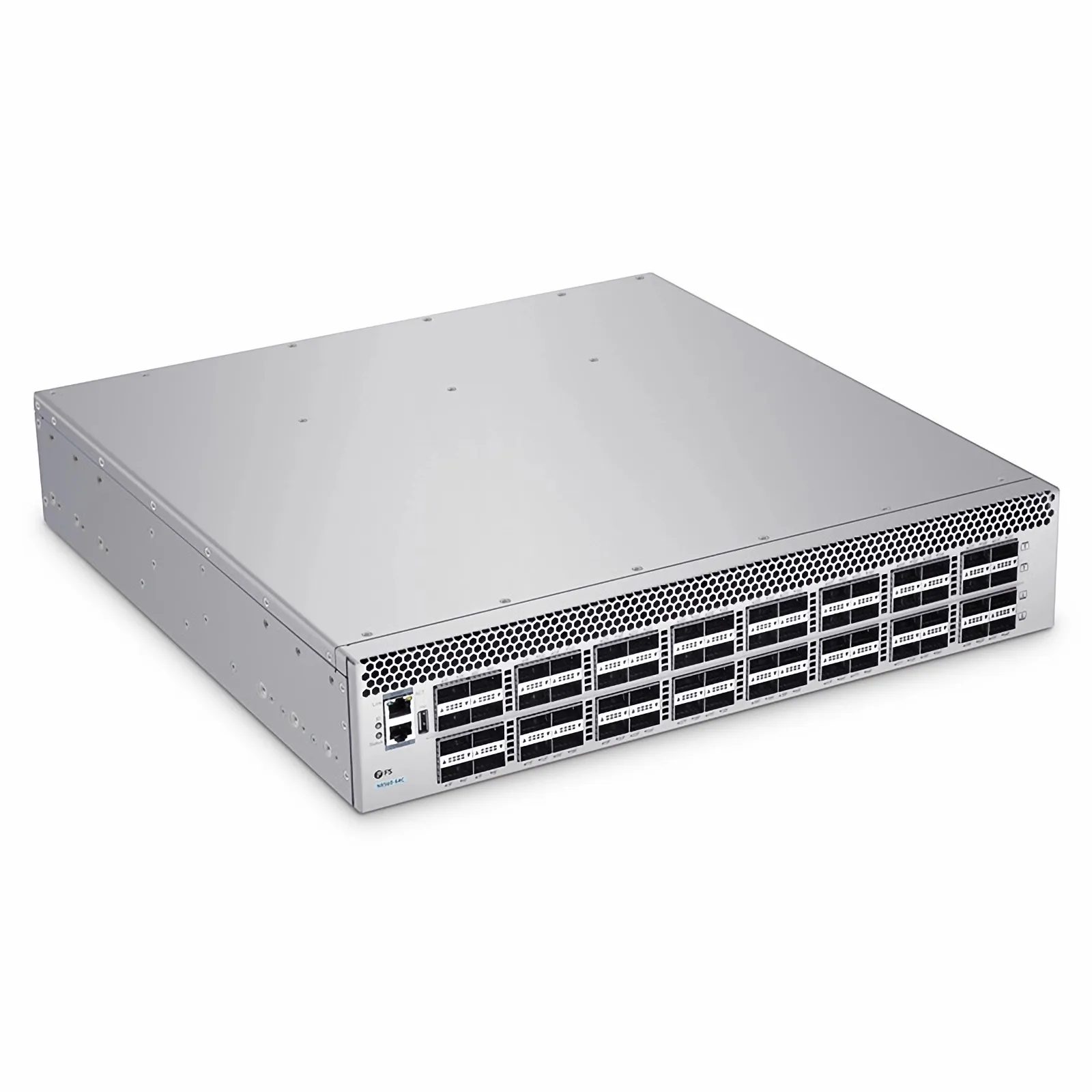

N8560-64C, 64-Port Ethernet L3 Data Center Switch, 64 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, Front-to-Back Airflow
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|

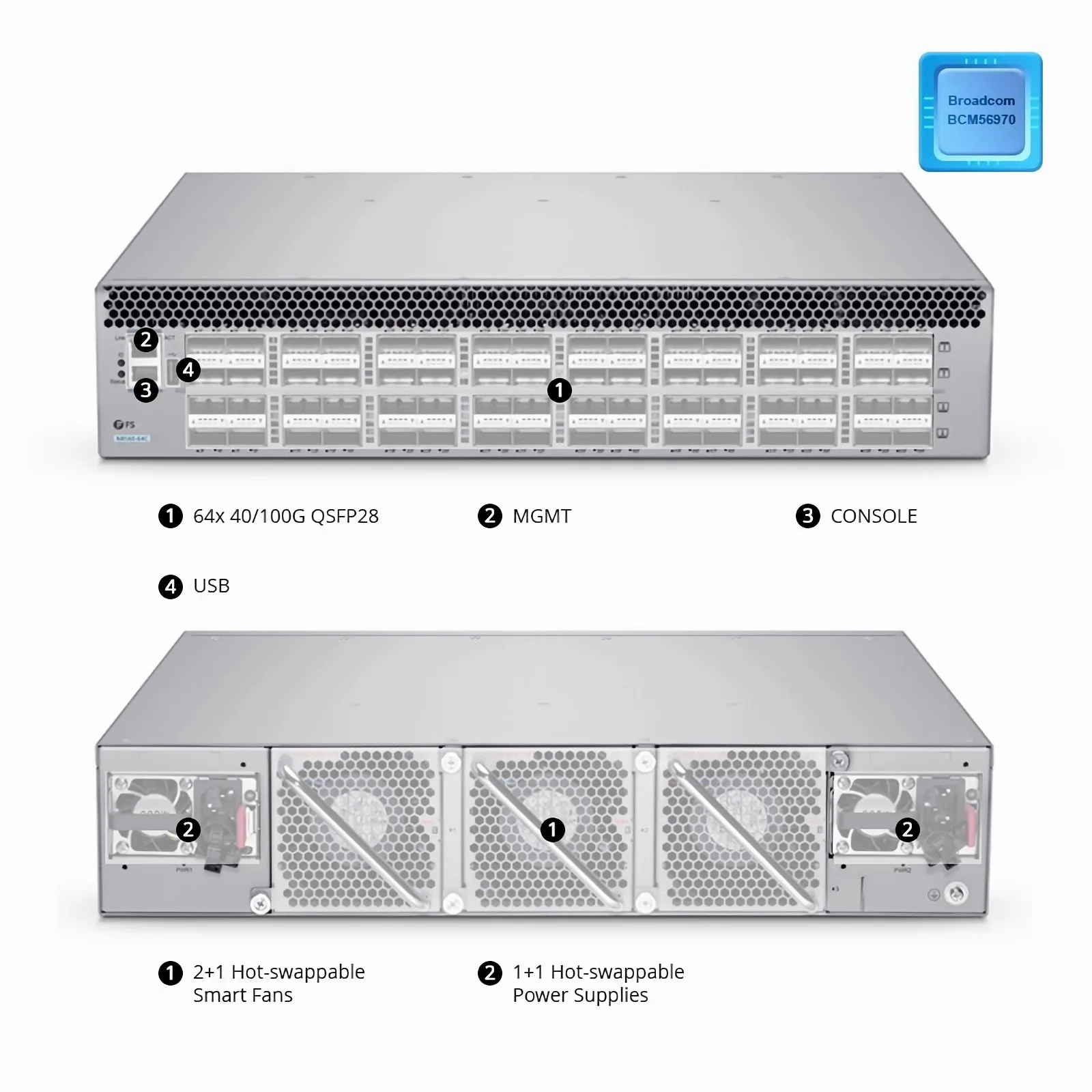

| Ports | 64x 100G QSFP28 |
| Switching Capacity | 6.4 Tbps |
| Switch Chip | BCM56970 |
| Forwarding Rate | 4288 Mpps |
| Power Supplies | 2 (1+1 Redundancy) Hot-swappable, AC |
| Packet Buffer | 42MB |

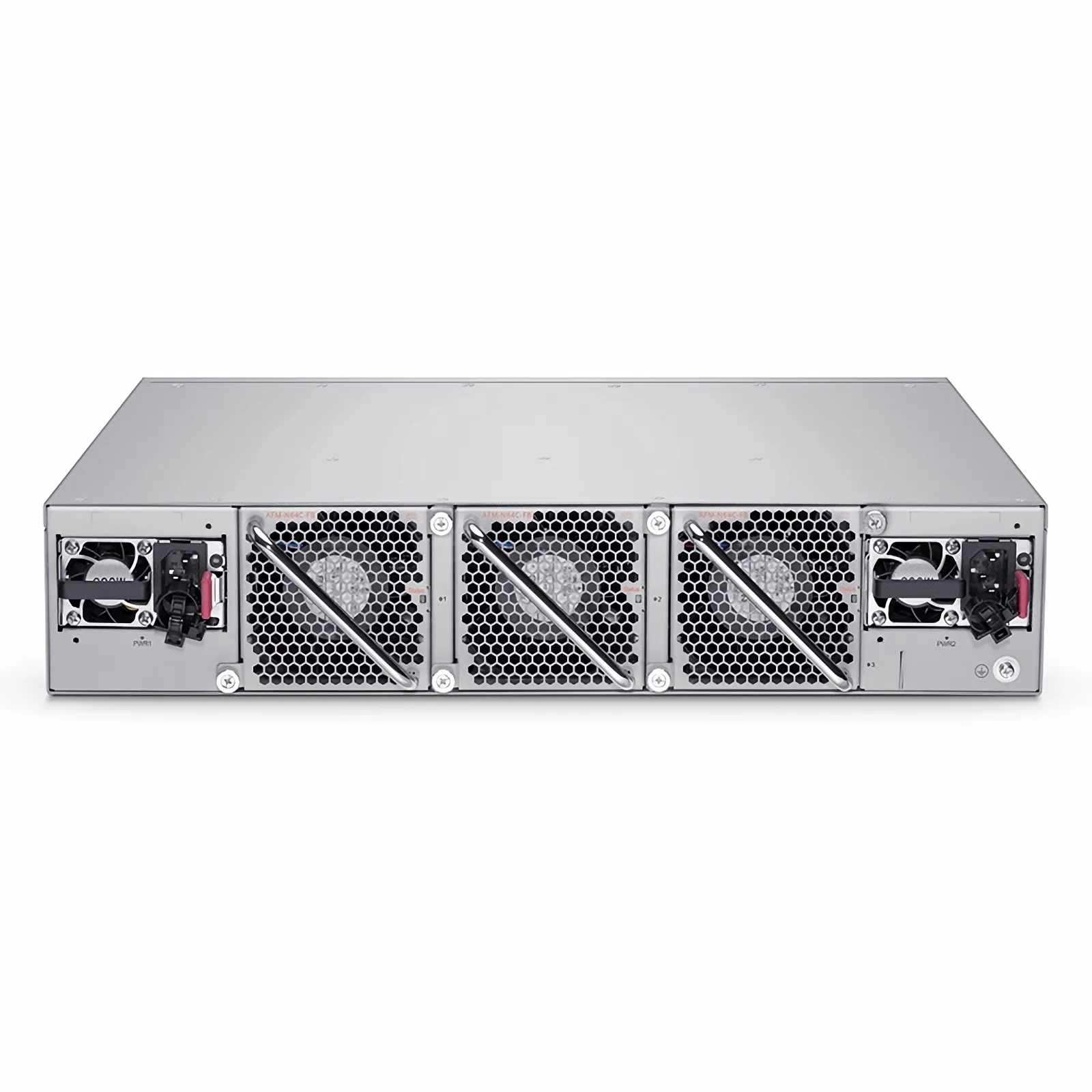

| Fans | 3x Hot-swappable Fans, Front-to-Back |
| Jumbo Frame | 9,216 |
| Dimensions (HxWxD) | 3.46"x 17.4"x 17.7" (88x 442x 450mm) |
| MTBF | 390,000 hours |
| Weight | 36.6 lbs (16.6kg) |
| MAC Address | 72K |
| Input Voltage | 100-240VAC, 50-60Hz |
| IPv4/IPv6 Routes | 128,000/64,000 |
| Input Current | 5A-10A |
| Number of VLANs | 4K |
| Max. Power Consumption | <600W |
| SDRAM | 4GB |
| Operating Temperature | 0 to 45ºC (32 to 113°F) |
| Flash Memory | 8GB (EMMC) |
