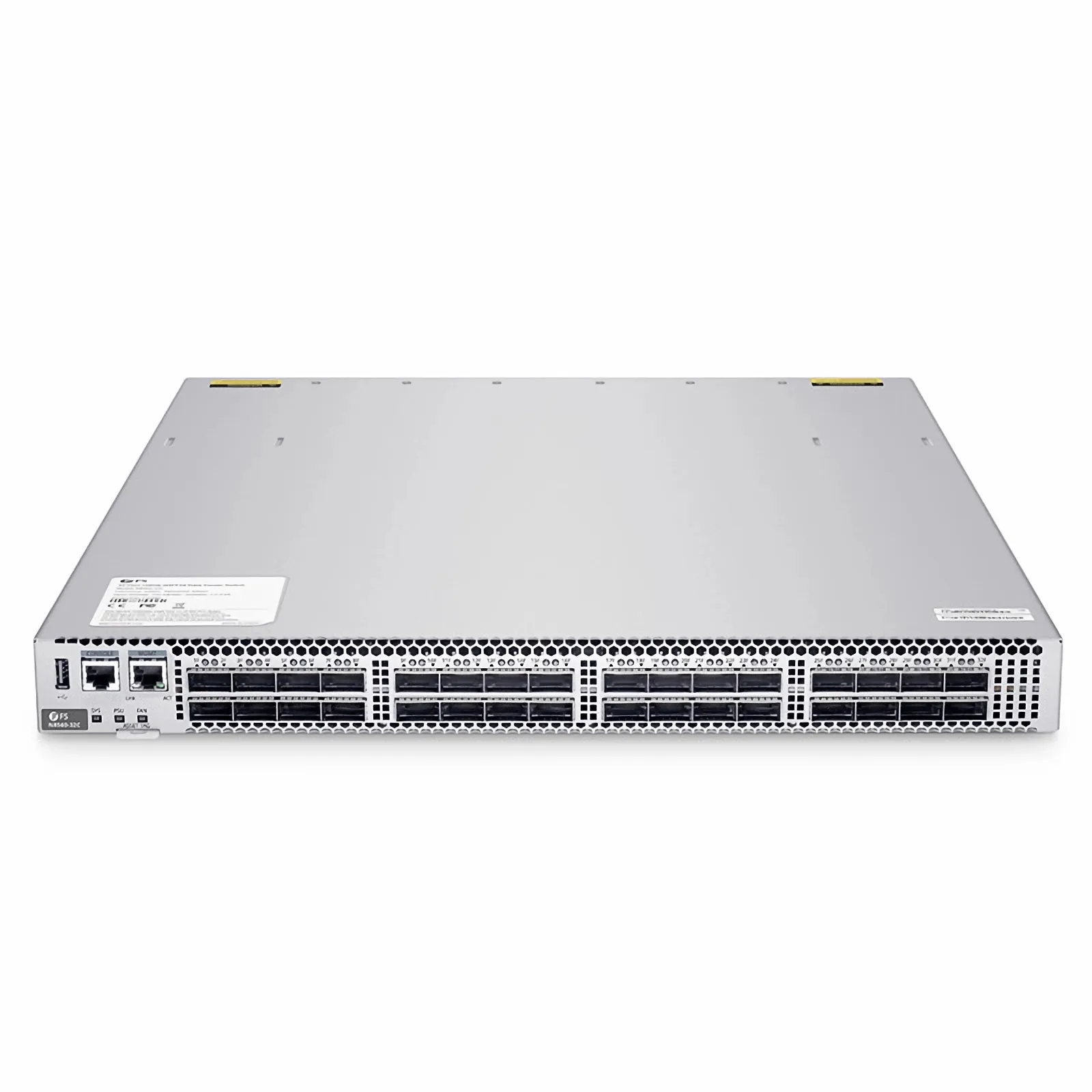

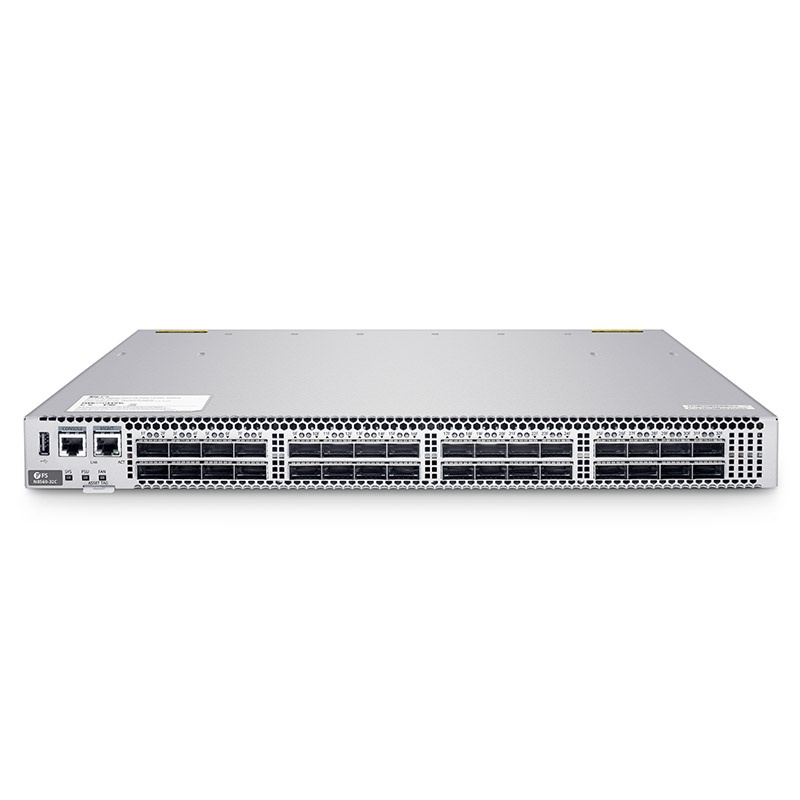

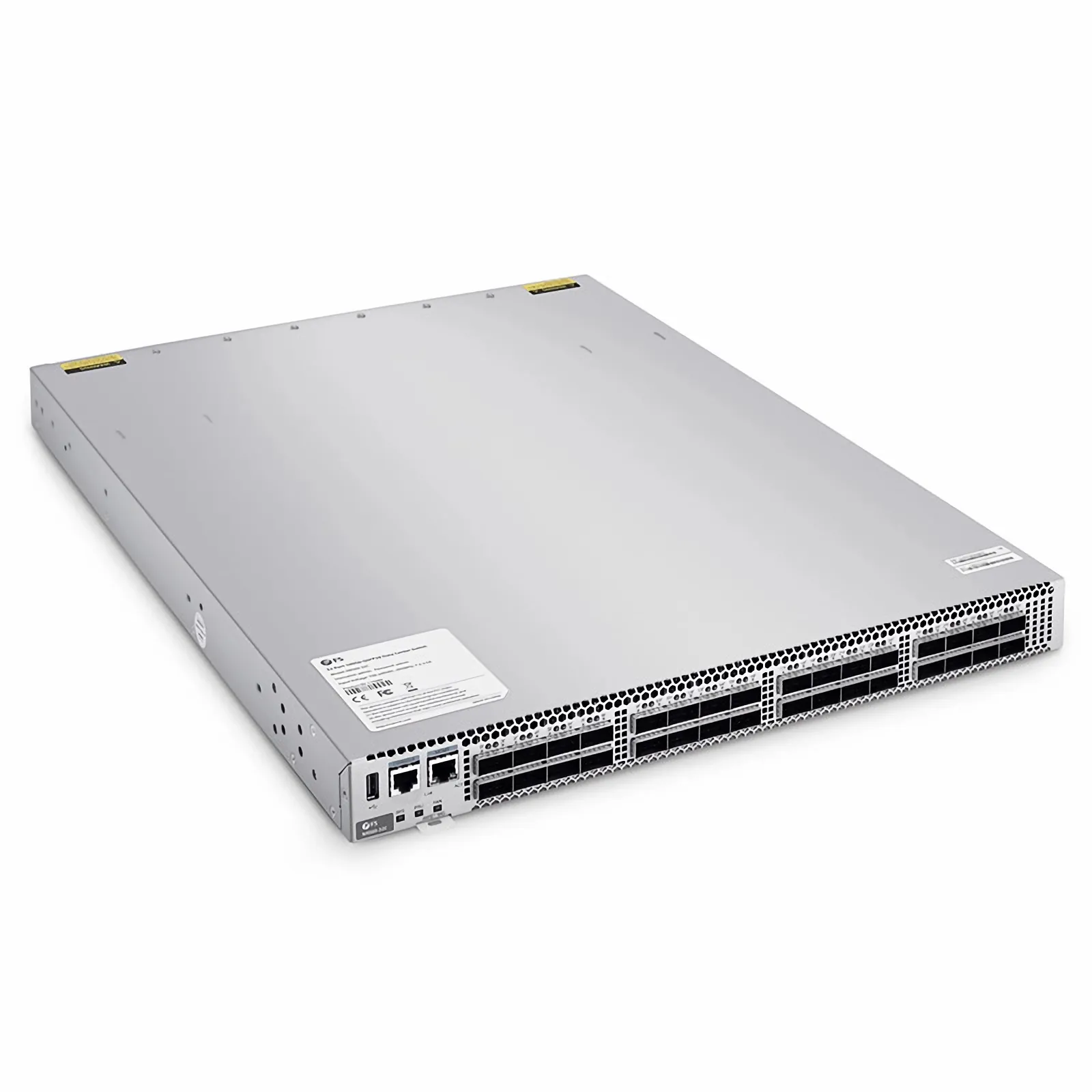

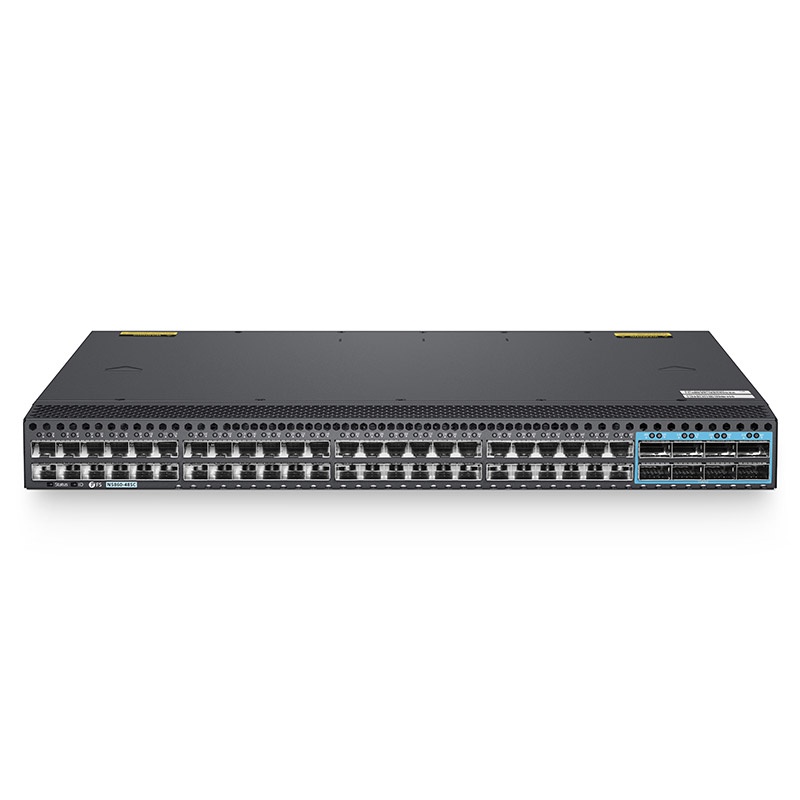

N8560-32C, 32-Port Ethernet L3 Data Center Switch, 32 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, Front-to-Back Airflow

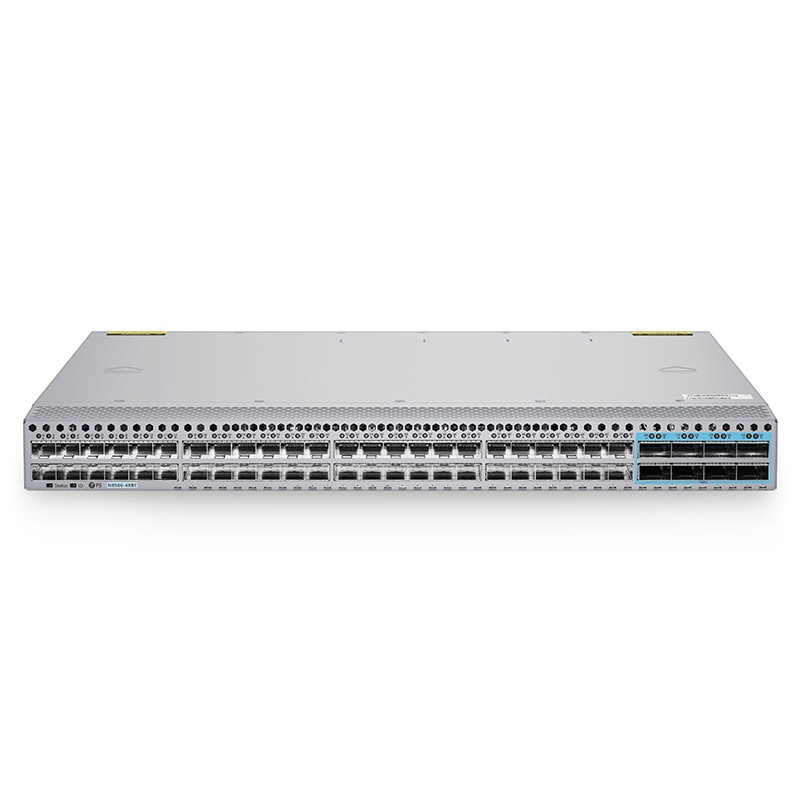

N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|

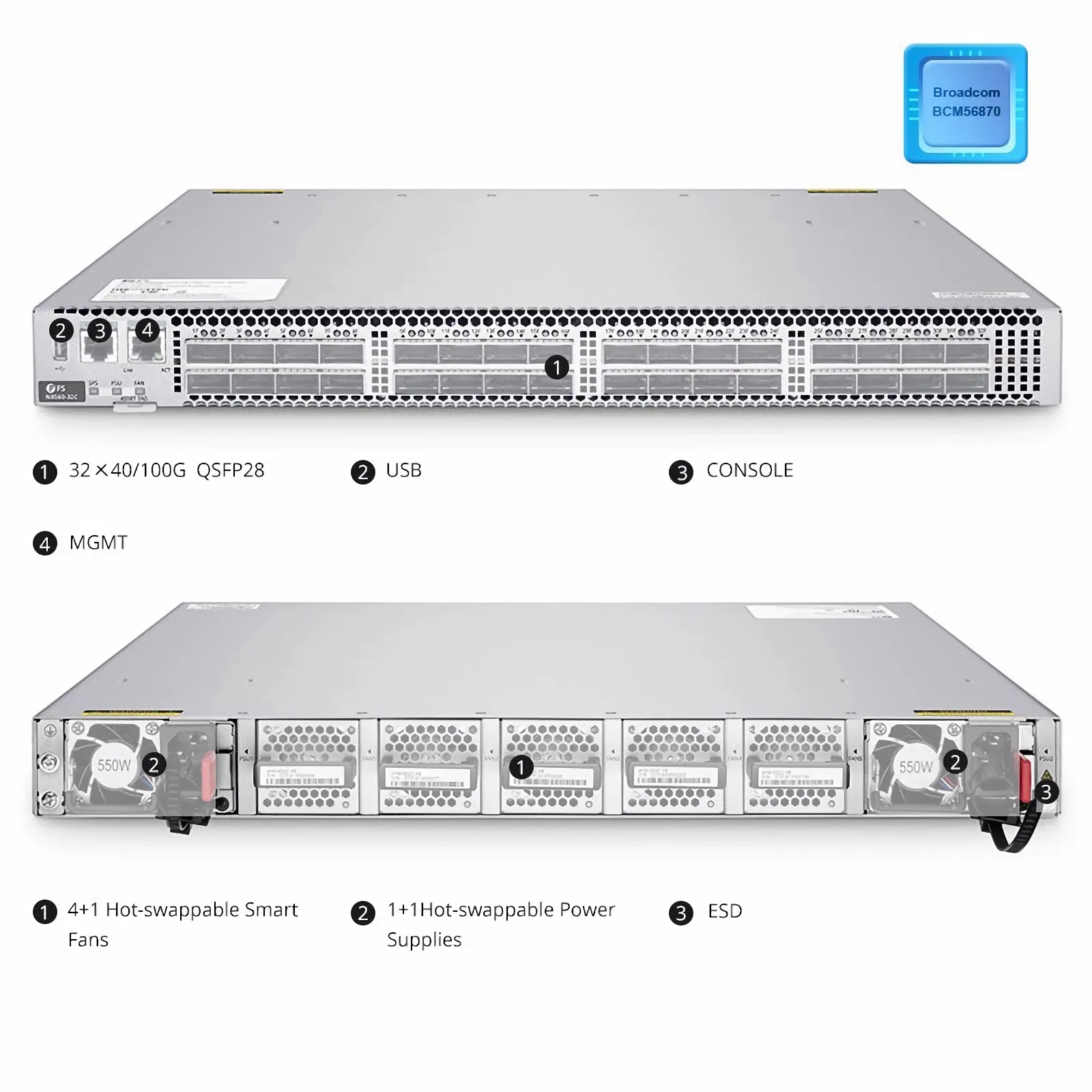

| Ports | 32x 100G QSFP28 |
| Switching Capacity | 3.2 Tbps |
| Switch Chip | BCM56870 |
| Forwarding Rate | 2000 Mpps |

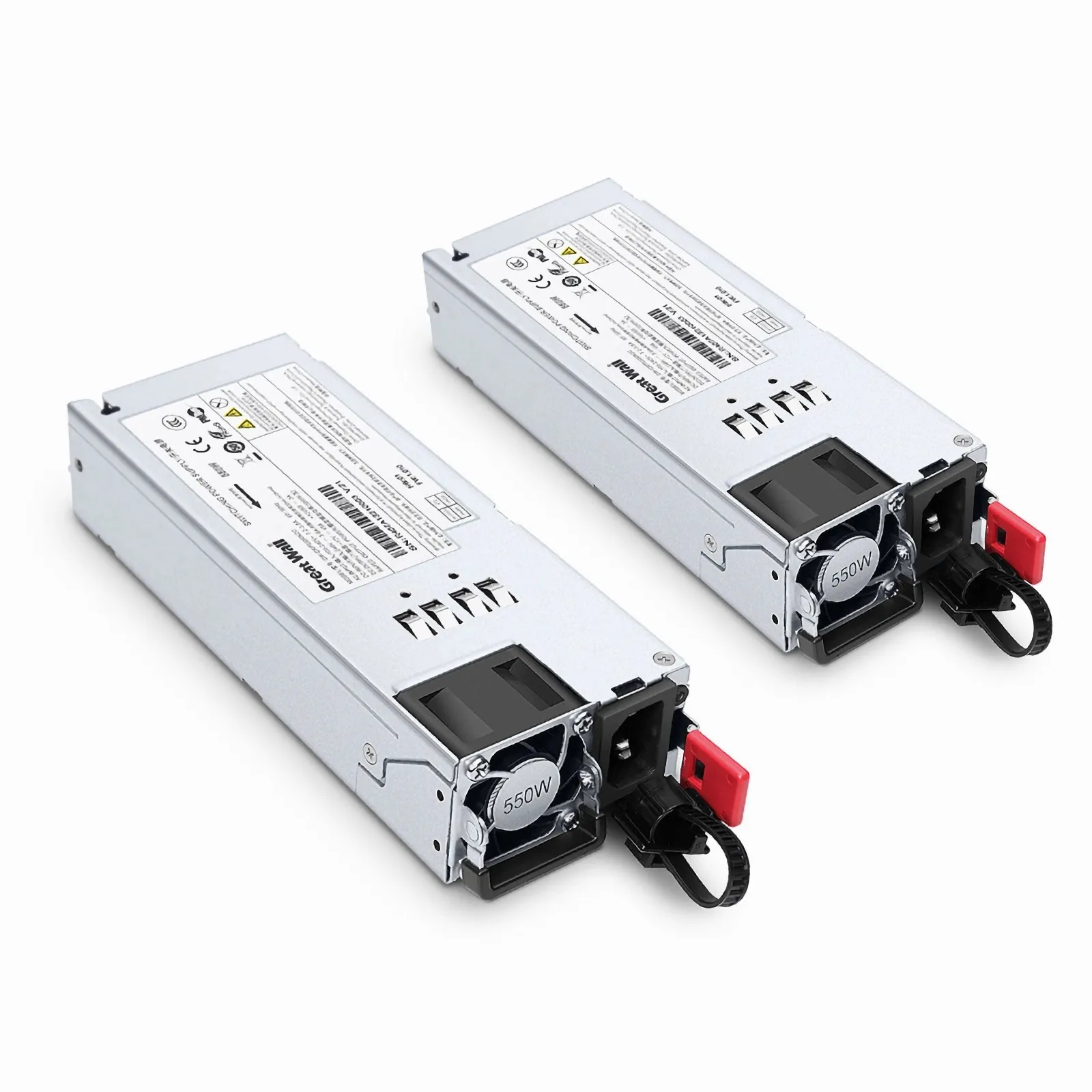

| Power Supplies | 2 (1+1 Redundancy) Hot-swappable, AC |
| Packet Buffer | 32MB |

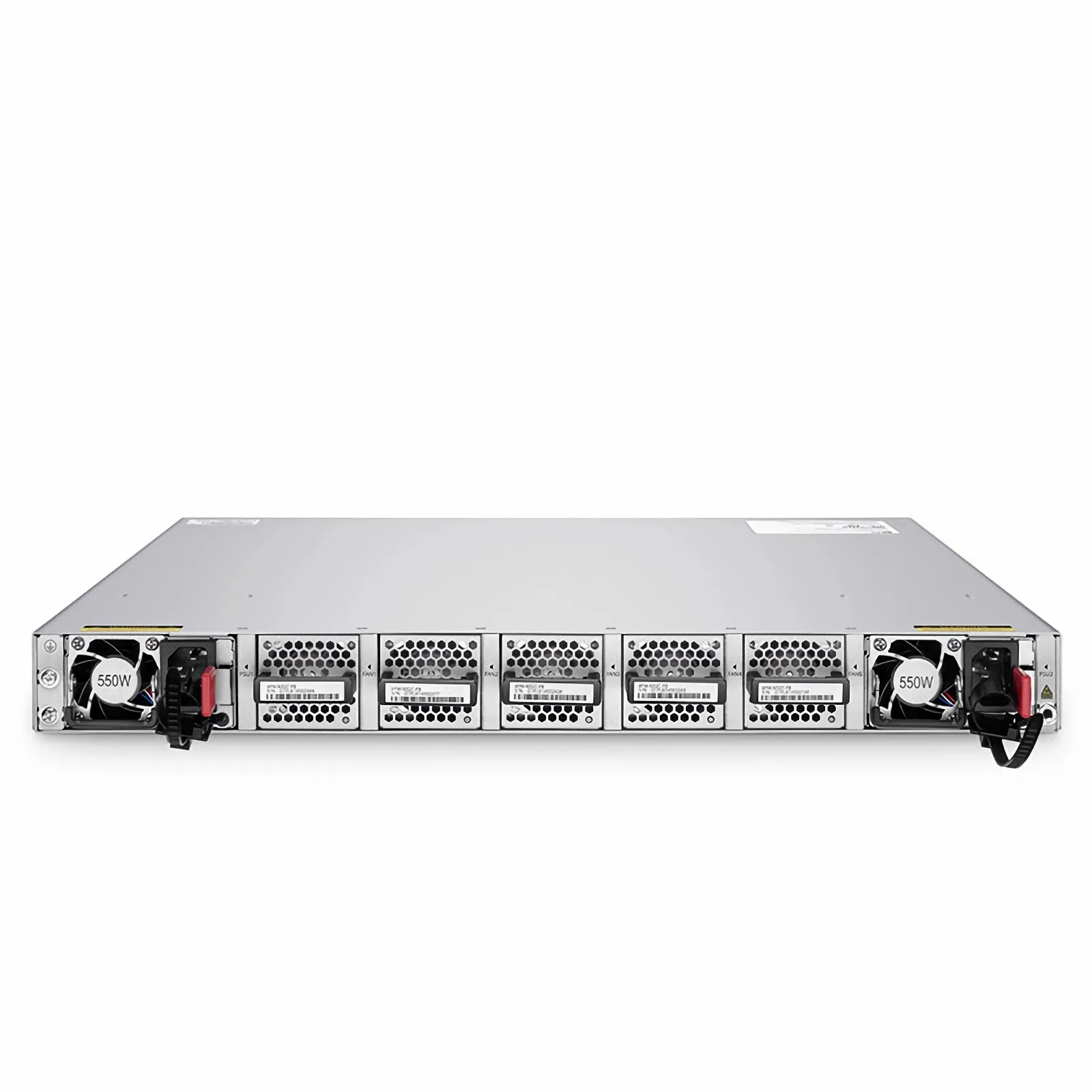

| Fans | 5x Hot-swappable Fans, Front-to-Back |
| Jumbo Frame | 9,216 |
| Dimensions (HxWxD) | 1.73"x 17.4"x 22" (44x 442x 560mm) |
| MTBF | 390,000 hours |
| Weight | 28.2 lbs (12.8kg) |
| MAC Address | 96K |
| Input Voltage | 100-240VAC, 50-60Hz |
| IPv4/IPv6 Routes | 128,000/64,000 |
| Input Current | 7.2A-3.5A |
| Number of VLANs | 4K |
| Max. Power Consumption | <450W |
| SDRAM | 8GB |
| Operating Temperature | 0 to 40ºC (32 to 104°F) |
| Flash Memory | 240GB (SSD) |
