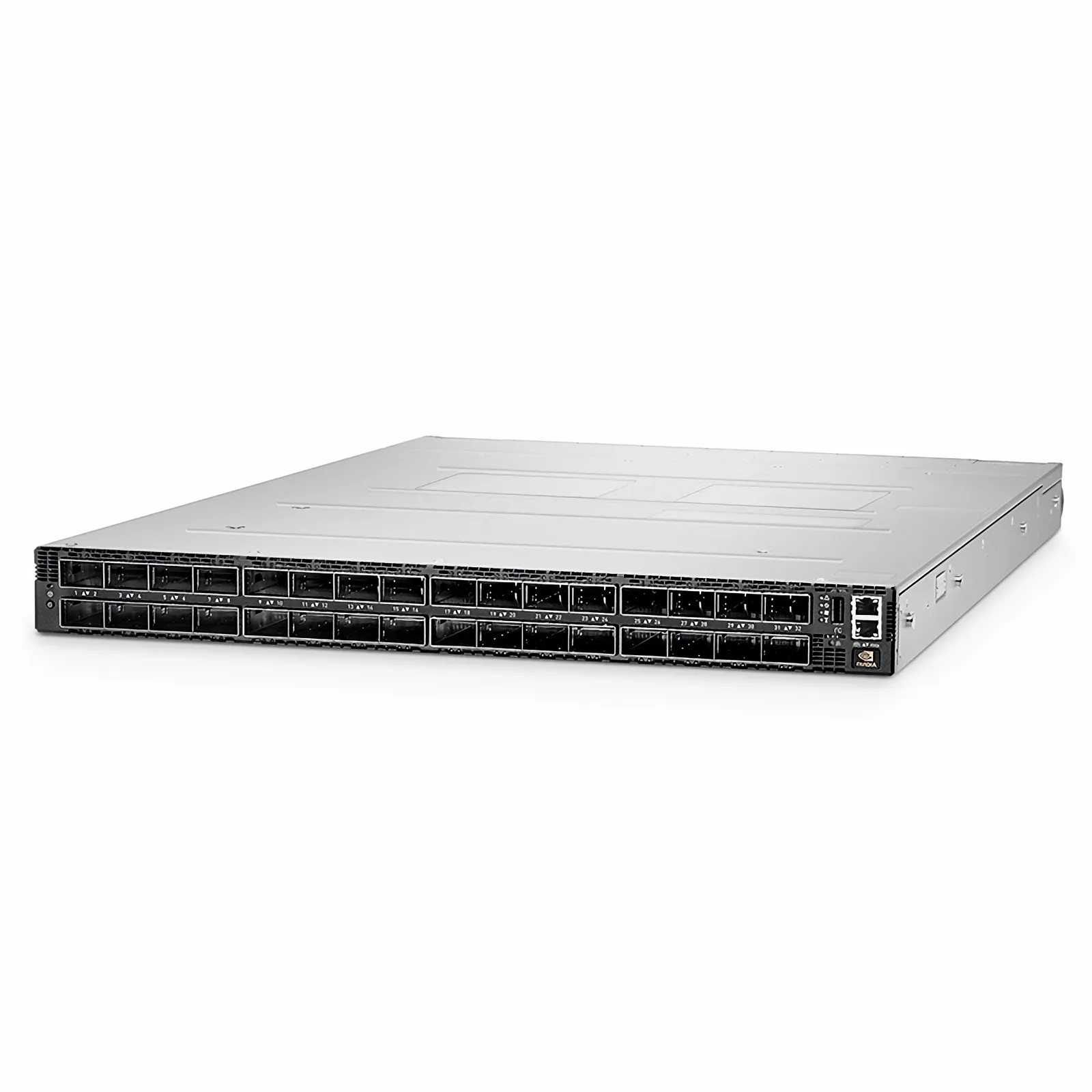

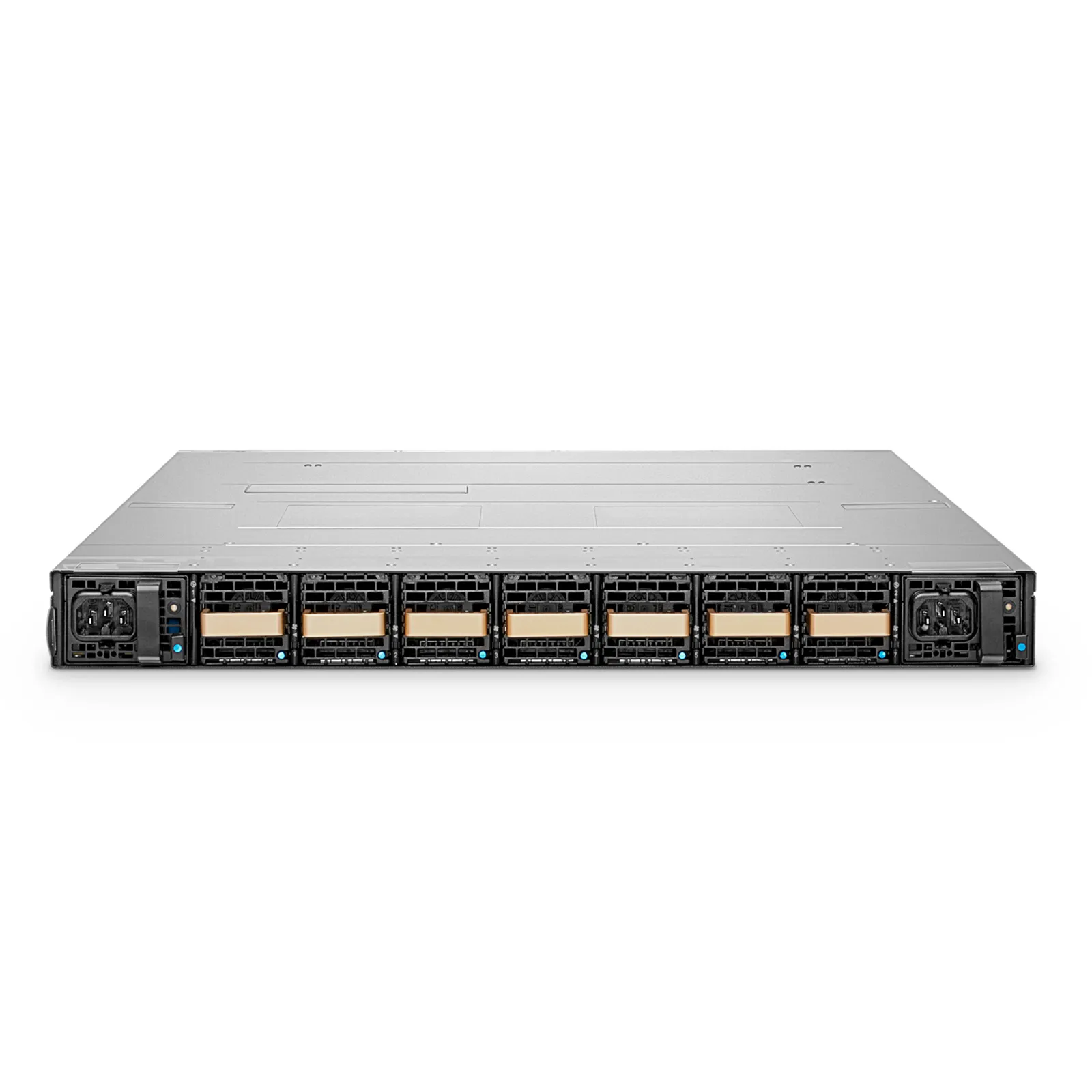

MQM9700-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Managed, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|
| Manufacturer | Mellanox |
| Ports | 64 x NDR 400G 32 OSFP Connectors |
| CPU | x86 Coffee Lake i3 |
| Switch Chip | NVIDIA QUANTUM-2 |
| Software | MLNX-OS |
| Switching Capacity | 25.6 Tbps |
| Typical Power Consumption | 747w |
| System Memory | Single 8GB |
| Max. Power Consumption | 1703w |
| Storage | M.2 SSD SATA 16GB 2242 FF |
| AC Power Supplies | 1+1 Hot-swappable |
| Voltage | 1x/2x, 200-240VAC 50/60Hz 10A |
| Fan Number | 6+1 Hot-swappable |
| Airflow | Back-to-Front（P2C） |
| Operating Temperature | 32°F to 95°F (0° to 35°C) |
| Storage Temperature | -40°F to 158°F (-40ºC to 70ºC) |
| Dimensions (Hx Wx D) | 1.7"x 17"x 26"(43.6x 438x 660mm) |
| Rack Units | 1 RU |
