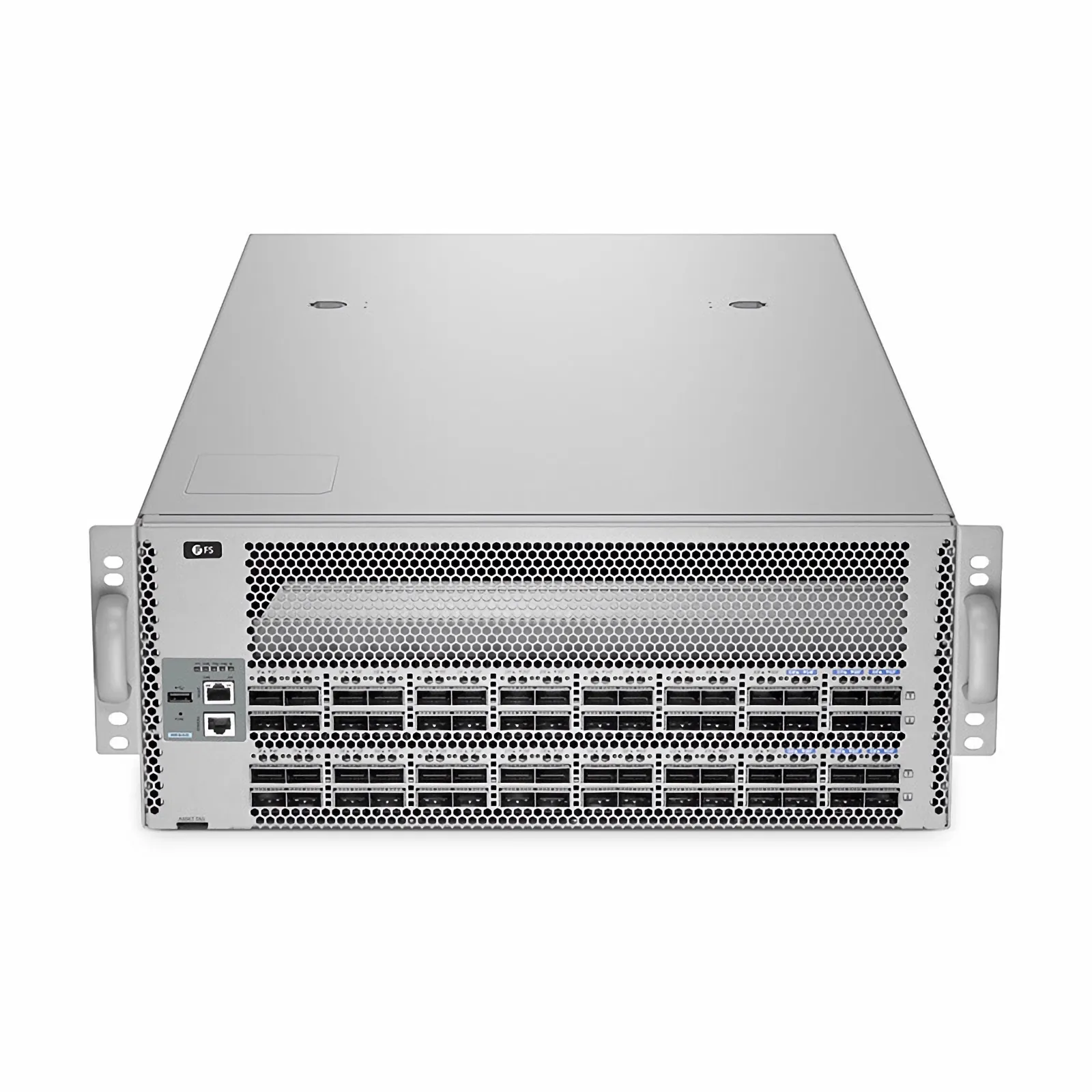

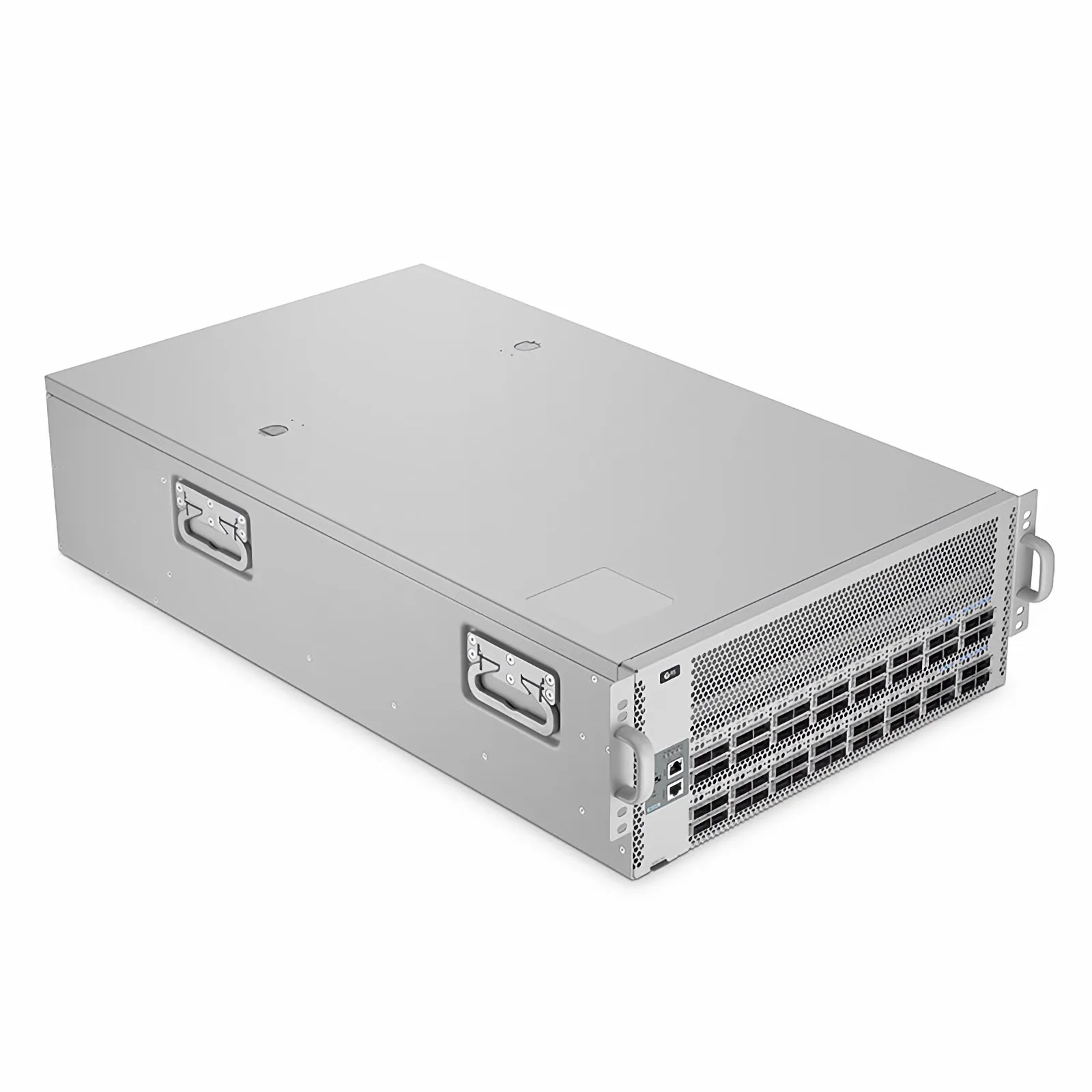

N9510-64D, 64-Port Ethernet L3 Data Center Switch, 64 x 400Gb QSFP-DD, Broadcom Chip, Support RoCEv2, Front-to-Back Airflow
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|

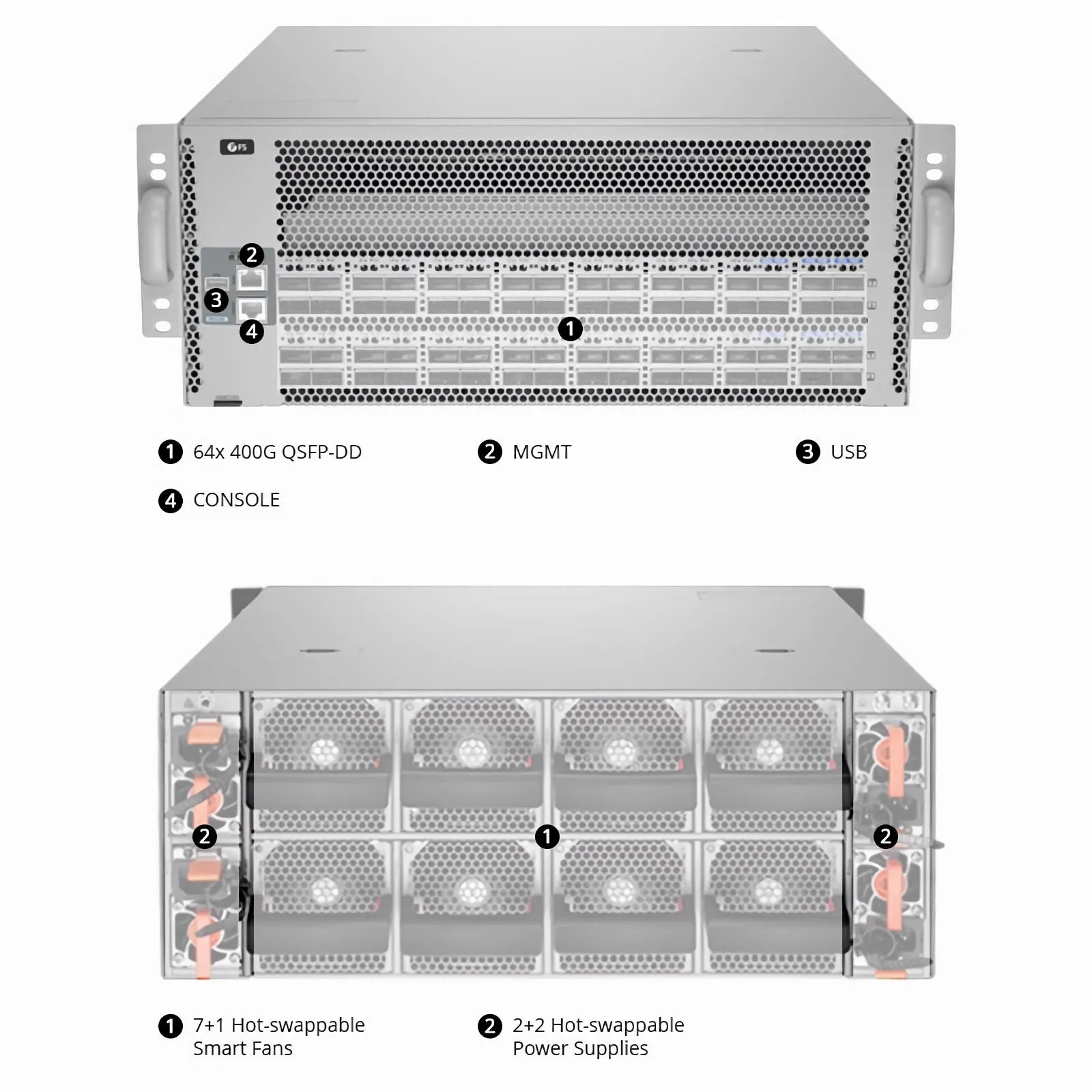

| Ports | 64x 400G QSFP-DD |
| Switching Capacity | 25.6 Tbps |
| Switch Chip | BCM56990 Tomahawk 4 |
| Forwarding Rate | 10,300 Mpps |
| CPU | Intel Xeon D-1627 (4-core 8-thread processor with a clock speed of 2.9 GHz) |
| Packet Buffer | 113.66 MB |
| Power Supplies | 4 (2+2 Redundancy) Hot-swappable, AC |
| Jumbo Frame | 9,216 |

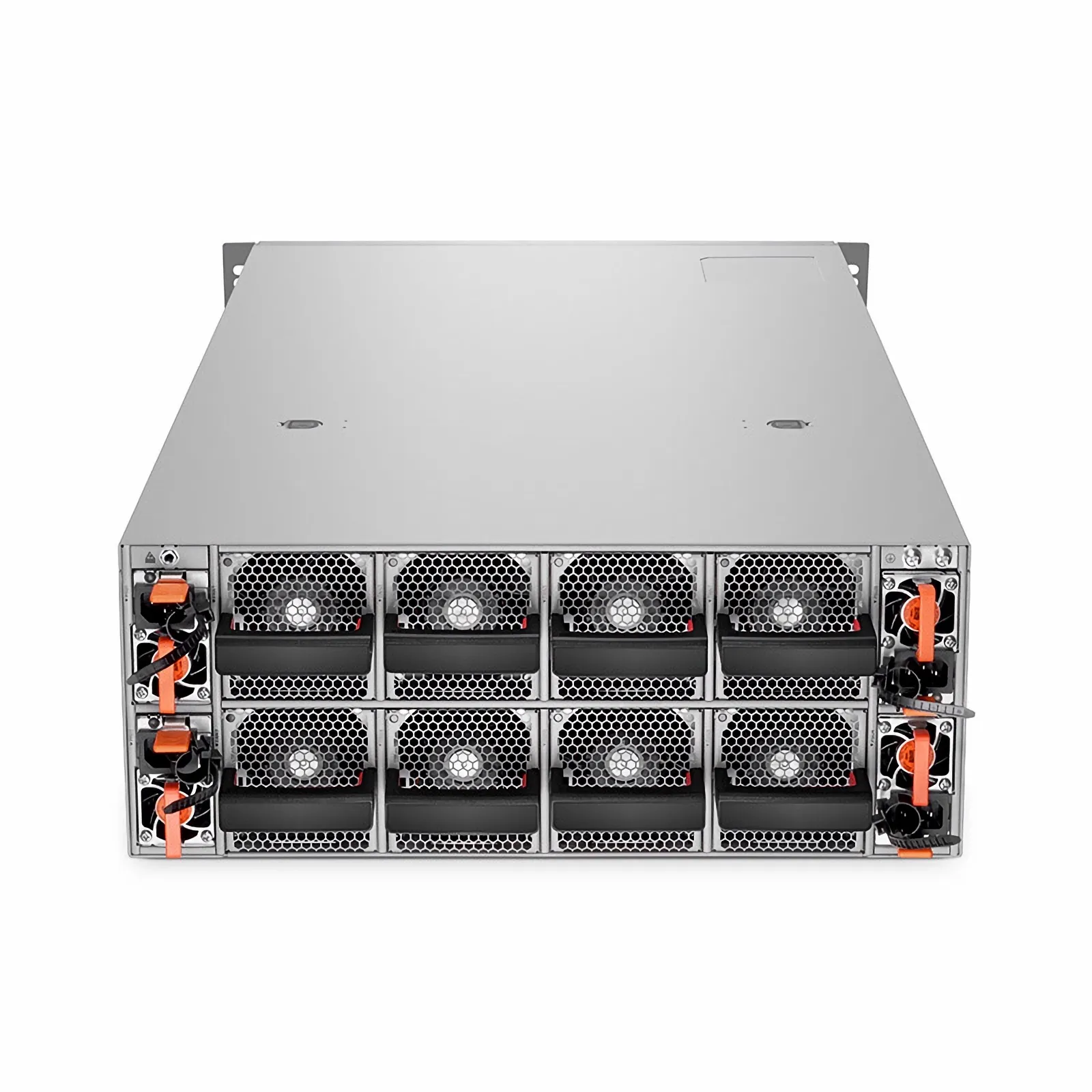

| Fans | 8 (7+1 Redundancy), Hot-swappable, Front-to-Back |
| MTBF | 390,000 Hours |
| Dimensions (HxWxD) | 6.89"x 17.40"x 29.92" (175x 442x 760mm) |
| MAC Address | 8K |
| Weight | 105.82lbs (48 kg) |
| IPv4/IPv6 Routes | 200,000/128,000 |
| Input Voltage | 100-127VAC, 200-240VAC, 50-60Hz |
| Number of VLANs | 4,094 |
| Input Current | 13.8A MAX (100-127VAC), 8.5A MAX (200-240VAC) |
| SDRAM | DDR4 8 GB (Compatible with 16 GB) |
| Max. Power Consumption | <2524W |
| Flash Memory | 240 GB (SSD) |
| Operating Temperature | 0ºC to 40ºC (32°F to 104°F) |
| ARP Entries | 32,000 |
| Storage Temperature | -40ºC to 70ºC (-40°F to 158°F) |
| Latency | <1μs |
