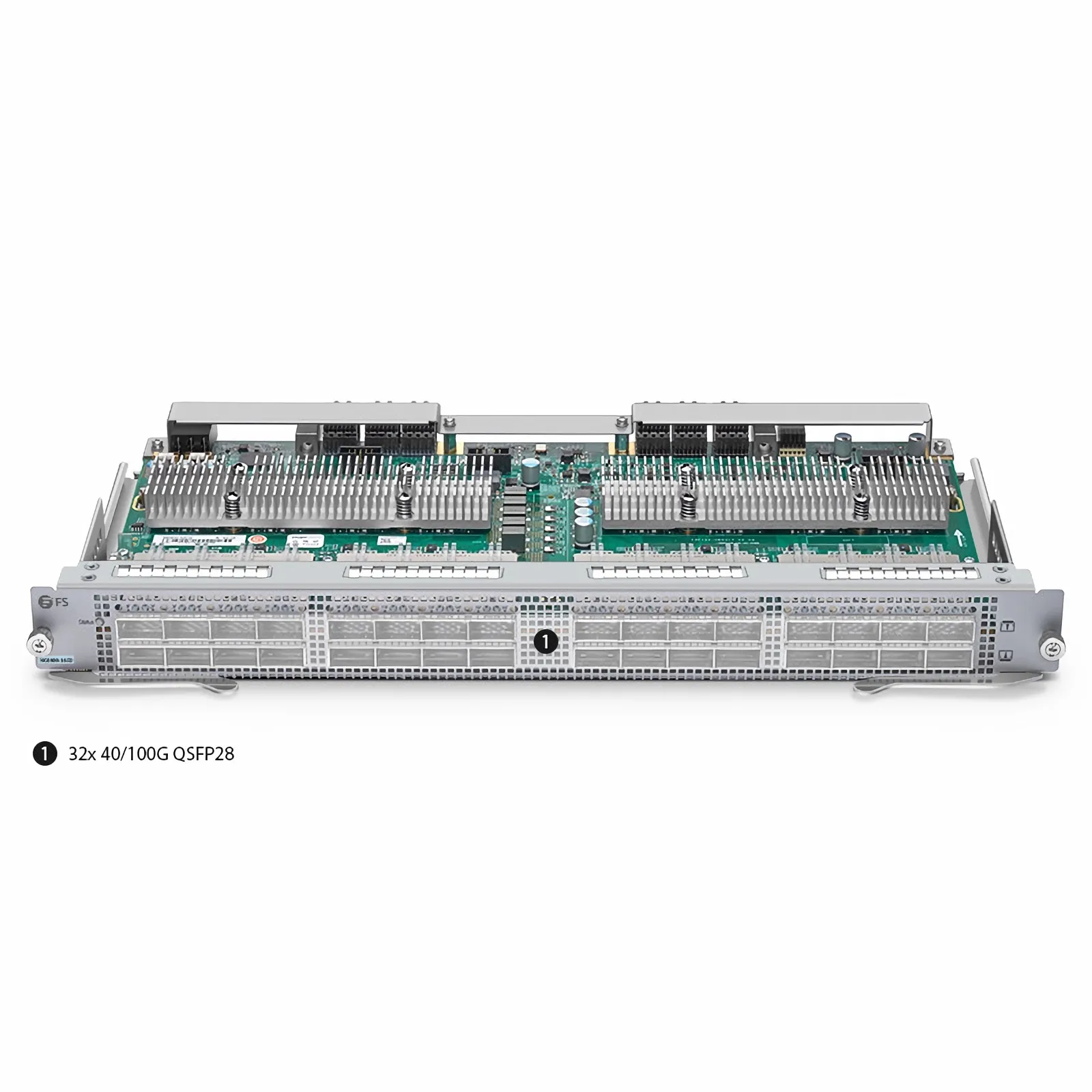

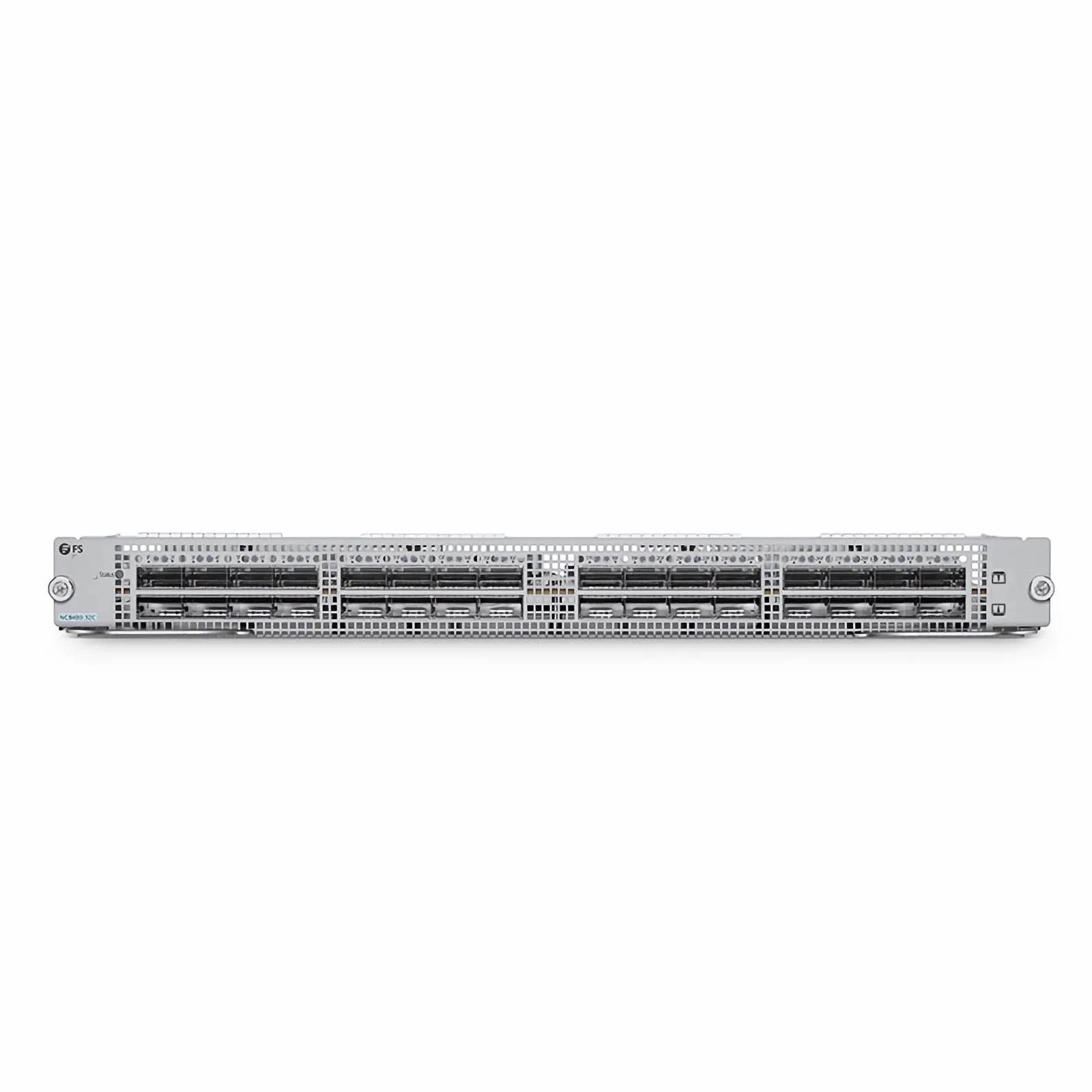

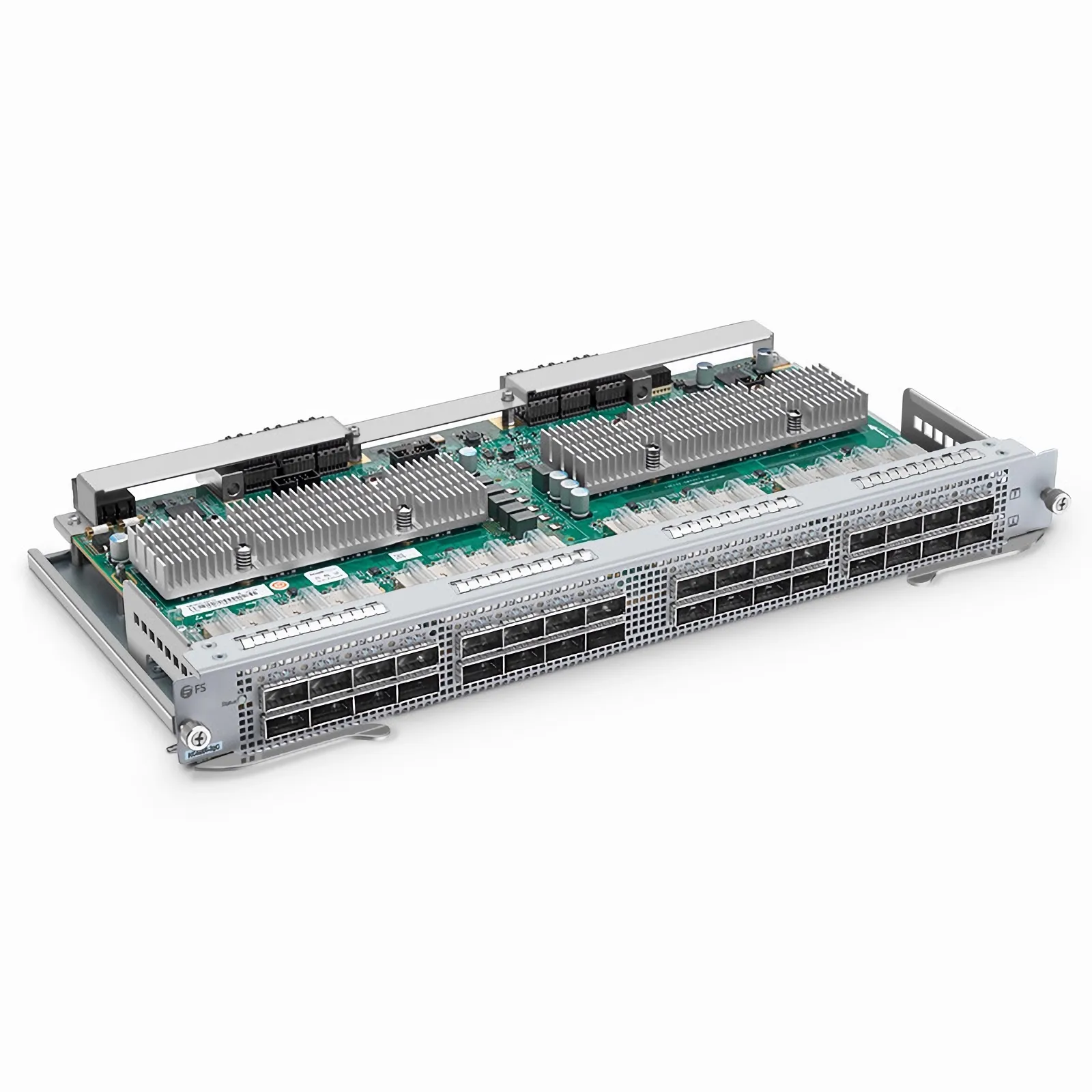

NC8400-32C, 32-Port 100Gb QSFP28 Line Card for Data Center Chassis Switch NC8400-4TH
N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports. It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.
Technical Specifications
Deep dive into the specifications and performance metrics.
| Feature | Value |
|---|---|
| Ports | 32x 100G QSFP28 |
| Matching Switch Chassis | NC8400-4TH |
| Hot Swapping | Supported |
| Max. Power Consumption | <329W |
| Dimensions (HxWxD) | 1.65''x 16.54''x 8.01'' (42x 420x 203.5mm) |
| Weight | 4.63 lbs (2.1kg) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Rack units | 1 RU |
